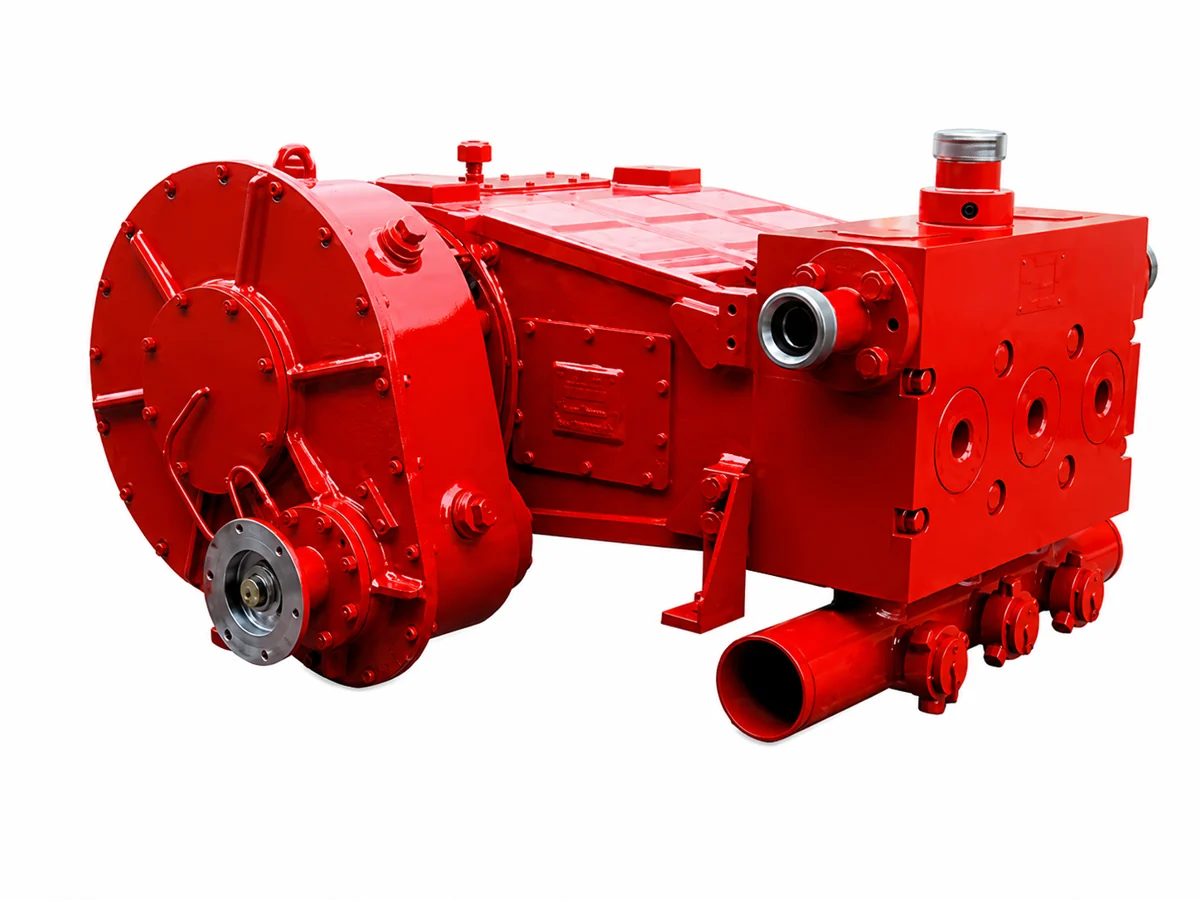

SPM TWS-600 pump equipment reference
SPM TWS600 equipment reference · Replacement parts matched to your configuration

SPM TWS600 Pump Parts

Request SPM TWS600 pump parts by the complete model and part number. This page provides a TWS600S reference for fluid-end and power-end parts identification.

TWS600, TWS600S and TWS600S HD must be checked separately. Send the full nameplate wording and fluid-end identification before selecting a part from the table.

Category
Fracturing Pump Parts
Inquiry details
Model · Part No. · Quantity
Email2000@pratt-oil.com
WhatsApp+86 159 0808 0040
WhatsApp InquirySend Email
View parts reference ↓

MAINTENANCE / REPAIR / OVERHAUL

SPM TWS600 Parts: What to Identify

  • Fluid end assemblies
  • Plungers and plunger packing
  • Valves and valve seats
  • Valve springs and valve covers
  • Suction and discharge components
  • Packing boxes and glands
  • Crossheads and connecting rods
  • Bearings and power end components
  • Seals, O-rings, gaskets, and repair kits
  • Other replacement and overhaul parts

For plungers and packing, state the diameter and the matching packing-box or kit number. For valves and seats, include their part numbers and dimensions. Include a drawing or clear photographs when the configuration is uncertain.

For a separate QWS-family inquiry, use the QWS2500 parts reference. For other models, return to the fracturing pump parts range. Match each part to its own pump nameplate.

PART NUMBERS / TECHNICAL REFERENCE

TWS600S part-number reference

This table is labelled TWS600S. Use its part numbers as references and check the complete suffix, fluid-end configuration and required sizes before ordering for TWS600, TWS600S or TWS600S HD.

Reference examples include 1P104705 (fluid end), 2P104716 (2.5-inch plunger) and 4P100116 (valve spring). A part-number match still needs the correct assembly and size; availability and compatibility are confirmed with the quotation.

150 parts in this reference

Download parts list (CSV) ↓

Find a part number in other equipment referencesSelect a number to keep a direct link to its row.

TWS600S parts reference
Part numberDescription
1P104705Fluid End
3P100137Upper Front Cover
P103068Polyurethane Seal for Upper Front Cover
2P1047162.5″ Plunger
P100151D-Shaped Seal for Upper Front Cover
2P1033453″ Plunger
P109379D-Shaped Seal for Upper Front Cover
3P107525Bronze Bushing
4P100116Valve Spring
3P107527Bronze Bushing
3P100176Valve Spring Retainer Plate
P103572HPSoft Plunger Packing
2A109540PPValve
P100332HPSoft Plunger Packing
4P100198Valve Spring
P103571HPHard Plunger Packing
2P110359Valve Insert
P100331HPHard Plunger Packing
3P104372Front Cover Nut
3P103522Packing Housing
2A109544Valve Seat
3P103524Packing Housing
2A109537PPValve with Insert
3P104707Plunger Crown Nut
3P100138Valve Spring Retainer Plate
3P104709Plunger Crown Nut
2A109541Valve Seat
P104736HPCrown Nut Seal
3P100135Lower Front Cover
P102093HPCrown Nut Seal
P103293Valve Seat Seal
3P104710Lower Front Cover
P100151Plastic Seal for Lower Front Cover
P107469Adapter
2P104711Upper Front Cover
3P100025Plunger Push Rod
2P1103564″ Valve Insert
P105095Polyurethane Seal for Upper/Lower Front Cover
3P1001485″ Plunger Clamp
P103064Small PTFE Sealing Ring
P109313D-Shaped Seal for Upper/Lower Front Cover
3A104755HPPlunger Packing Assembly
P103371Large PTFE Sealing Ring
3P101634Valve Spring Retainer Plate
P14897Nut 1-8 UNC
P103369Large Sealing Ring
4P104721Valve Spring
P109509Discharge Flange Face Seal Ring
P103063Small Sealing Ring
3P104723Front Cover Nut
P109509Discharge Flange D-Shaped Seal Ring
P108291Lower Front Cover Seal
2A109608PPValve
4P102292″ High-Pressure Line Face Seal
3A105297HPPlunger Packing Assembly
2A109605PPValve Seat
P100197Polyurethane Seal for Lower Front Cover
3A109556Small Plunger Packing
P104289Valve Seat Seal
3P100182Discharge Flange
4P101714Plunger Stud
P107455Adapter
P14896Discharge Flange Stud 1-8 UNC x 3-1/2
P107614Adapter
2P103069Front Cover Nut for Pressure Sensor
2P110355Valve Insert
G04010100025AASupport
G04050200010AADischarge Flange Assembly
P103576Small PTFE Sealing Ring
G04010700020AACrosshead Assembly
G04050300009AADischarge Plug Assembly
P103575Large PTFE Sealing Ring
G0410500012AACrank Connecting Rod Mechanism Assembly
P103370Large PTFE Sealing Ring
G06010000019AASuction Manifold
P102244Large Sealing Ring
P0100455AABearing Housing
P103368Large Sealing Ring
P2200478AABolt
P18481Small Sealing Ring
P6900068AABearing Housing Washer
P2600047AASmall Rod
4313000022Spring Washer
P2600048AALarge Rod
3A104731HPPlunger Packing Assembly
4317100022Washer
3A104769HPPlunger Packing Assembly
G04050300012AADischarge Cover Assembly
3A107044HPSmall Plunger Packing
P22008899AABearing Housing Bolt
3A107009HPRubber Plunger Packing
5402550001Spring
2P104719Front Cover Nut for Pressure Sensor
P1200649AANut
P2200897AABolt
G04050400010AASeal Block
G04020000002AAReduction Gearbox
G04051000001AAFastening Bolt
P4200011AAEccentric Shaft
P2300144AA3″ Plunger
P2200898AABolt
P2300094AA4″ Plunger
G04010103008AARod Assembly
P2300143AA3-1/2″ Plunger
P2200439AAGuide Bushing Mounting Bolt
1P100140Fluid End Assembly
G04050500018AASeal Assembly
1P102978Fluid End
P4400040AACrosshead
4P100143Back-Up Ring
P7100431AASpring Seat
2P1033124.5″ Plunger
P1400865AACrosshead Guide Bushing
P100141HPSoft Plunger Packing
P2200894AABolt
3P107531Bronze Bushing
4900200002Valve Assembly
P100142HPHard Plunger Packing
P1000315AACrosshead Washer
P100195HPSoft Plunger Packing
4313700090Thrust Ring
4P100144Wide Bronze Adapter Bushing
P1100607AAValve Seat
P100652HPHard Plunger Packing
P2001386AARod Pin
4P100145Narrow Bronze Adapter Bushing
P1700305AAO-Ring
3P103022Packing Housing
QBJ120208Threaded Plug
P102211HPCrown Nut Seal
G04050700010AASuction Cover Assembly
3P103027GPlunger Crown Nut
4314608018Key
3P100146G5.5″ Plunger Crown Nut
P1300338AAThreaded Gasket
P101252HPCrown Nut Seal
5402550003Spring
3P1001365.5″ Plunger
P5300023AAValve Cap Wrench
3P104373Lower Front Cover
5300150021Seal
4P100130Front Cover Nut
G04050900008AAValve Cover Puller
3P105149Upper Front Cover
54026001463.5″ Seal
4900200021Valve Rubber
K31201100001AAPlug Valve Assembly
5402600148Guide Ring
K41201102001AAQuick Coupling Assembly
5300250033Main Pressure Ring

Request an SPM TWS600 Parts Quote

Send the complete model and suffix, serial number, fluid-end identification, requested part numbers, plunger or packing size, quantities and delivery country. Attach the nameplate and relevant drawing or photos. We will confirm the proposed supply scope and compatibility before the order.
