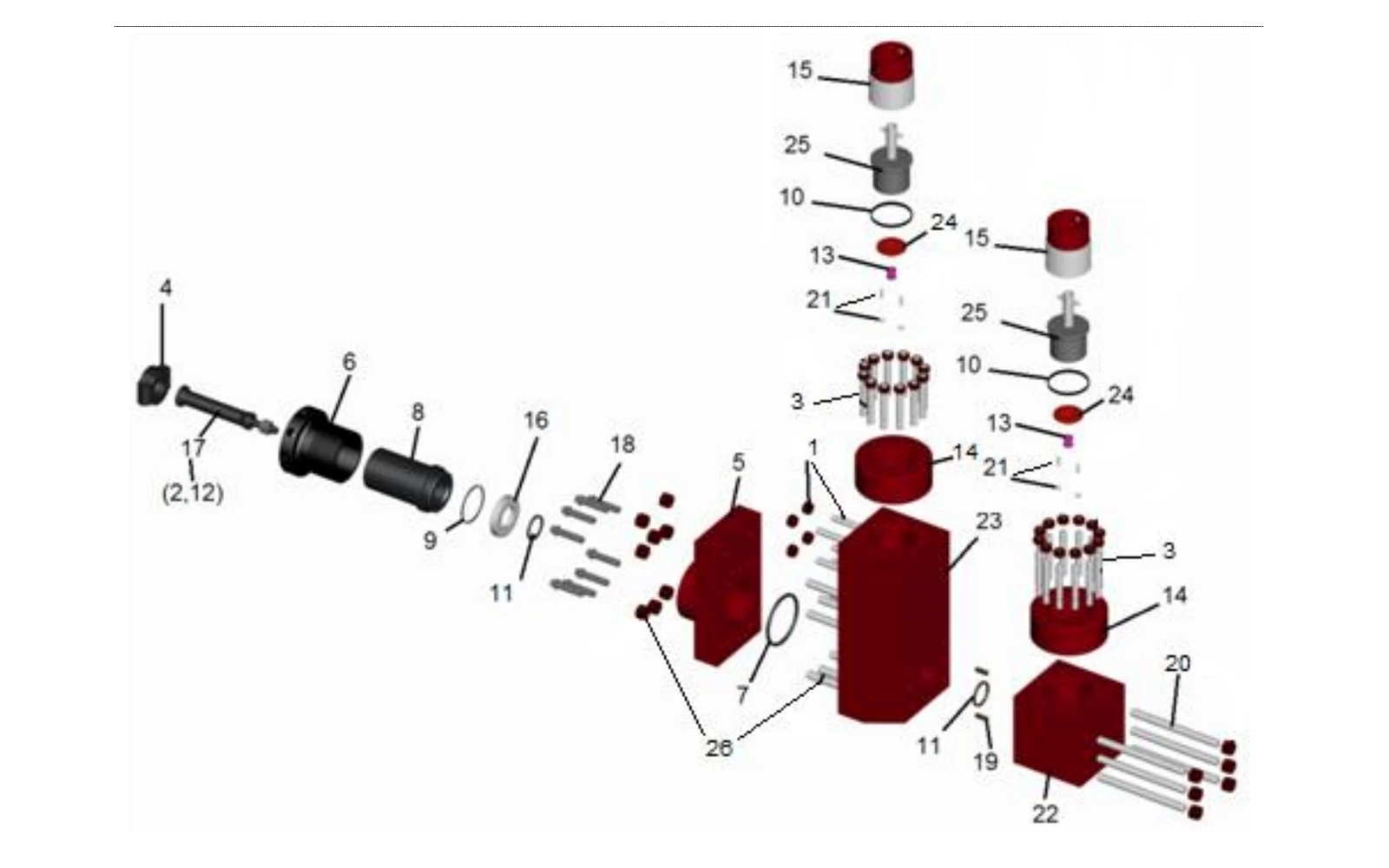

Weatherford MP-10 Parts: Identifying the Two-Piece Fluid End

Parts List

Search drawing number or nameDownload parts list (CSV)

516 parts

P/P	Part / Drawing No.	Name	Part / Drawing No.	Name
Weatherford MP-10 parts catalogue / manual
1	`1924827`	Assembly, Fluid End	`1317966`	Gland, Screw
2	`1316959`	Assembly Module	`1738845`	Stud & Nut Discharge Manifold
3	`0766960`	O-Ring, Discharge Manifold Seal	`1318075`	Wear Plate, Liner
4	`1124941`	Manifold, Discharge	`1133856`	Nut, Piston Rod
5	`0767109`	O-Ring, Suction Manifold Seal	`1317518`	Rod, Piston
6	`1125003`	Manifold, Suction	`1317854`	Stud & Nut Valve Cover
7	`1738845`	Stud & Nut Discharge Manifold	`1383133`	Screw, Liner Retainer, Flange
8	`1133856`	Nut, Piston Rod	`1124997`	Clamp, Piston Rod
9	`1124997`	Clamp, Piston Rod	`1323512`	Stud, Piston Rod Connecting
10	`1917433`	Flange, Liner Retainer	`1917433`	Flange, Liner Retainer
11	`1317079`	Nut, Liner Retainer	`1418004`	Pin, Dowel
12	`1317089`	Ring, Liner Retainer	`1317079`	Nut, Liner Retainer
13	`1317734`	Seal, Liner NBR	`1418005`	Stud & Nut Suction Module
14	`1317766`	Seal, Valve Cover Plug NBR	`1317089`	Ring, Liner Retainer
15	`1317809`	Seal, Wear Plate	`1738844`	Stud & Nut Valve Guide
16	`1317865`	Rod, Sub Studded	`1848450`	Module, Suction
17	`1317889`	Bushing, Valve Guide	`1317734`	Seal, Liner NBR
18	`1317905`	Flange, Valve Cover	`1317030`	Module, Suction, Studded
19	`1317966`	Gland, Screw	`1317766`	Seal, Valve Cover Plug NBR
20	`1318075`	Wear Plate, Liner	`1848477`	Module, Discharge
21	`1317518`	Rod, Piston	`1317809`	Seal, Wear Plate
22	`1323512`	Stud, Piston Rod Connecting	`1317004`	Module, Discharge, Studded
23	`1848450`	Module, Suction	`1317865`	Rod, Sub Studded
24	`1317030`	Module, Suction, Studded	`1317926`	Guide, Valve
25	`1848477`	Module, Discharge	`1317889`	Bushing, Valve Guide
26	`1317004`	Module, Discharge, Studded	`1317949`	Plug, Valve Cover with Guide
27	`1317926`	Guide, Valve	`1317905`	Flange, Valve Cover
28	`1317949`	Plug, Valve Cover with Guide	`1738846`	Stud & Nut Power End
29	`1317095`	4.000-inch liner, Chrome Iron	`1317518`	Piston Rod (two piece)
30	`1317107`	4.000-inch liner, Zirconia Ceramic	`1133856`	Nut
31	`1317734`	Liner gasket, Rubber	`1323512`	Connecting Stud
32	`1317736`	Liner gasket, Urethane	`1317865`	Sub Rod
33	`1280179`	Assembly, Power Frame	`1316936`	Piston Rod Clamp
34	`1280225`	Power Frame	`1149771`	Bolt Piston Rod Clamp
35	`1280222`	Gasket, Crosshead Cover	`0766945`	Seal Piston Head
36	`1280221`	Cover, Crosshead	`1317542`	Piston, 4.00 inch; Bonded DD Urethane
37	`0908887`	Cover, Main Bearing	`1317541`	Piston, 4.00 inch; Bonded DD HT Urethane
38	`1124651`	Gasket, Main Bearing Cover	`1317543`	Piston, 4.00 inch; Bonded Nitrile
39	`1280235`	Bolt, Main Bearing Housing	`1317544`	Piston, 4.00 inch; Replaceable Nitrile Complete
40	`1280203`	Breather Cap	`1317520`	Piston, 4.00 inch; Replaceable Nitrile Rubber
41	`1124696`	Screw 7/8”	`1317550`	Piston, 4.50 inch; Bonded DD Urethane
42	`1280223`	Seal, Stato 5/8” ID	`1317549`	Piston, 4.50 inch; Bonded DD HT Urethane
43	`0908382`	Assembly, Crankshaft	`1317551`	Piston, 4.50 inch; Bonded Nitrile
44	`1124655`	Retainer, Crankpin Inner	`1317552`	Piston, 4.50 inch; Replaceable Nitrile Complete
45	`1124677`	Bolt, Retainer	`1317522`	Piston, 4.50 inch; Replaceable Nitrile Rubber
46	`1124656`	Retainer, Crankpin Outer	`1317558`	Piston, 5.00 inch; Bonded DD Urethane
47	`1280232`	Bearing, Eccentric	`1317557`	Piston, 5.00 inch; Bonded DD HT Urethane
48	`0908362`	Rod, Connecting	`1317559`	Piston, 5.00 inch; Bonded Nitrile
49	`0908355`	Crankshaft	`1317560`	Piston, 5.00 inch; Replaceable Nitrile Complete
50	`0908357`	Gear, Main	`1317524`	Piston, 5.00 inch; Replaceable Nitrile Rubber
51	`1124662`	Cap screw, 1½” – 8 UNC X 4½”	`1317566`	Piston, 5.50 inch; Bonded DD Urethane
52	`1124664`	Nut, Lock, 1½” – 8 UNC	`1317565`	Piston, 5.50 inch; Bonded DD HT Urethane
53	`1124695`	Retainer, Main Bearing Inner	`1317567`	Piston, 5.50 inch; Bonded Nitrile
54	`1124677`	Cap screw, DH ⅝” – 11 UNC x 1½”	`1317568`	Piston, 5.50 inch; Replaceable Nitrile Complete
55	`1124669`	Retainer, Main Bearing Outer	`1317526`	Piston, 5.50 inch; Replaceable Nitrile Rubber
56	`1280233`	Bearing, Main	`1317574`	Piston, 6.00 inch; Bonded DD Urethane
57	`1124646`	Carrier, Main Bearing, Left	`1317573`	Piston, 6.00 inch; Bonded DD HT Urethane
58	`1124668`	Carrier, Main Bearing, Right	`1317575`	Piston, 6.00 inch; Bonded Nitrile
59	`1124666`	Spacer, Main Bearing	`1317576`	Piston, 6.00 inch; Replaceable Nitrile Complete
60	`0908356`	Assembly, Pinion Shaft	`1317528`	Piston, 6.00 inch; Replaceable Nitrile Rubber
61	`1124731`	Cap screw, HH ½” – 13 UNC x 1⅜”	`1317582`	Piston, 6.50 inch; Bonded DD Urethane
62	`1124735`	Washer, Lock M14	`1317581`	Piston, 6.50 inch; Bonded DD HT Urethane
63	`1124725`	Carrier, Oil Seal	`1317584`	Piston, 6.50 inch; Bonded Nitrile
64	`1124727`	Gasket, Oil Seal Carrier	`1317585`	Piston, 6.50 inch; Replaceable Nitrile Complete
65	`1124724`	Wear Ring, Oil Seal	`1317530`	Piston, 6.50 inch; Replaceable Nitrile Rubber
66	`1124733`	Seal, Oil 8½” x 10½” x ⅝”	`1317587`	Piston, 6.75 inch; Bonded DD Urethane
67	`0908359`	Bearing, Pinion Shaft	`1317586`	Piston, 6.75 inch; Bonded DD HT Urethane
68	`1124732`	Cap screw, HH ⅞” – 9 UNC x 2”	`1317588`	Piston, 6.75 inch; Bonded Nitrile
69	`0215371`	Washers, Lock	`1317589`	Piston, 6.75 inch; Replaceable Nitrile Complete
70	`1124729`	Carrier, Pinion Bearing	`1317531`	Piston, 6.75 inch; Replaceable Nitrile Rubber
71	`1124723`	Shaft, Pinion	`1318051`	Valve with Bonded Insert; Full Open
72	`1124713`	Key, 2” x 2” x 8”	`1318052`	Valve with Bonded Insert; Full Open HT
73	`1010502`	Bolt, Key	`1318053`	Valve with Insert; Full Open
74	`1280234`	Tool, Pinion Turning	`1318048`	Valve with Insert; 3 Web CG
75	`1280238`	Bolt, ⅝” – 11 UNC x 2”	`1318047`	Valve with Insert; 3 Web CG HT
76	`1124872`	Assembly, Crosshead	`1318050`	Valve with Insert; 4 Web CG
77	`1124886`	Bolt, Retainer Plate to Crosshead	`1318049`	Valve with Insert; 4 Web CG HT
78	`1124878`	Bolt, Retainer Plate to Wrist Pin	`1317993`	Replaceable Insert; Full Open
79	`1124911`	Plate, Wrist Pin Retainer	`1317985`	Replaceable Insert; 3 Web CG
80	`0908381`	Pin, Wrist	`1317988`	Replaceable Insert; 3 Web CG HT
81	`0908364`	Bearing, Wrist Pin	`1317991`	Replaceable Insert; 4 Web CG
82	`0908368`	Crosshead	`1317992`	Replaceable Insert; 4 Web CG HT
83	`1124876`	Guide, Upper Crosshead	`1318028`	Valve Spring CS; Full Open
84	`1124887`	Guide, Lower Crosshead	`1318028`	Valve Spring CS; Full Open HT
85	`1124906`	Bolt, Crosshead Guide	`1318026`	Valve Spring CS; 4 Web CG
86	`0908378`	Rod, Crosshead Extension	`1318026`	Valve Spring CS; 4 Web CG HT
87	`1134267`	Bolt, Extension Rod	`1318038`	Valve Spring SS; Full Open
88	`1124885`	Baffle	`1318038`	Valve Spring SS; Full Open HT
89	`1124882`	Gasket, Wiper Box	`1318032`	Valve Spring SS; 3 Web CG
90	`1124881`	Box, Wiper	`1318032`	Valve Spring SS; 3 Web CG HT
91	`1317770`	Seal, Double-Lip 4½” x 5½” x ½”	`1318008`	Valve Seat; Full Open
92	`1123534`	Spring, Wiper Box	`1318008`	Valve Seat; Full Open HT
93	`1124898`	O-ring, Wiper Box Front Plate	`1318006`	Valve Seat; 3 Web CG
94	`1280249`	Screw, Cap ⅜” – 16 UNC x 1½”	`1318006`	Valve Seat; 3 Web CG HT
95	`1124901`	Retainer Ring, Seal, Diaphragm, Wiper Box	`1318007`	Valve Seat; 4 Web CG
96	`1124888`	Plate, Locking, Crosshead Guide	`1318007`	Valve Seat; 4 Web CG HT
97	`0908042`	Washer M10	`1317875`	Puller Head; Full Open
98	`1124917`	Tie-Wire	`1317875`	Puller Head; Full Open HT
99	`0509759`	Locktite	`1317872`	Puller Head; 3 Web CG
100	`1924827`	Assembly, Fluid End	`1317872`	Puller Head; 3 Web CG HT
101	`1316959`	Assembly Module	`1317874`	Puller Head; 4 Web CG
102	`0766960`	O-Ring, Discharge Manifold Seal	`1317874`	Puller Head; 4 Web CG HT
103	`1124941`	Manifold, Discharge	`1241141`	Valve Seat Puller Kit*; Full Open
104	`0767109`	O-Ring, Suction Manifold Seal	`1241141`	Valve Seat Puller Kit*; Full Open HT
105	`1236089`	Cap screw, HH ⅞” – 9 UNC x 45mm	`1241141`	Valve Seat Puller Kit*; 3 Web CG
106	`1125002`	Washer, Flat	`1241141`	Valve Seat Puller Kit*; 3 Web CG HT
107	`1125003`	Manifold, Suction	`1241141`	Valve Seat Puller Kit*; 4 Web CG
108	`1125010`	Dampener, Suction	`1241141`	Valve Seat Puller Kit*; 4 Web CG HT
109	`1316959`	Assembly Module
Weatherford MP-10 reference document: MP10
110	`1280179`	Assembly, frame, MP10	`1280241`	Washer, M10
111	`1280196`	Cover, window, inclined, MP10	`1124989`	SPRING, VALVE, MP10, WFT
112	`1280197`	Gasket, cover, window, inclined, MP10	`1124991`	ASSEMBLY, VALVE, MP10, WFT
113	`1280220`	Bolt 1/2"-13UNC-2BX1 3/4“	`1124992`	NUT, LOCK, PISTON, MP10, WFT
114	`1280200`	Cover, top, w/ breather seat, MP10	`1280242`	Piston, 5.00IN, MP8/10
115	`1280201`	Gasket, cover, top, MP10	`1280243`	Piston, 5.50IN, MP 8/10
116	`1280199`	Bolt 1/2"-13UNC-2BX1 3/4	`1280244`	Piston, 6.00IN, MP 8/10
117	`1280203`	Cap, breather, MP10	`1280245`	Seal, piston, MP10
118	`1280204`	SCREW 5/8"-11UNCX7.28"	`1124994`	ROD, PISTON, MP10, WFT
119	`1280227`	NUT 5/8"-11UNC	`1280246`	Liner, 5.00, MP 8/10
120	`1280206`	Pin, cylinder, 1/2 x 1.78, MP10	`1280247`	Liner, 5.50IN, MP 8/10
121	`1280207`	Pim, cotter, MP10	`1280248`	Liner, 6.00IN, MP 8/10
122	`1280208`	Signboard, rotation, MP10	`1124995`	ASSEMBLY, HOSE, MP10, WFT
123	`1280199`	Bolt 1/2"-13UNC-2BX1 3/4"	`1124997`	CLAMP, PISTON ROD, MP10, WFT
124	`1280210`	Plate, window, back, MP10	`1124955`	SPRING, VALVE GUIDE, MP10, WFT
125	`1280212`	Gasket, plate, window, back, MP10	`1125000`	ORING, 185 X 7, HNBR
126	`1280213`	Plug, Z, 1/2", NPT, MP10	`1125001`	CAPSCREW, HEX HEAD, 7/8 - 9UNC X 45MM
127	`1280214`	Cartridge, scale, oil, MP10	`1125003`	MANIFOLD, SUCTION, MP10, WFT
128	`1280215`	Scale, oil, MP10	`1125002`	FLAT, WASHER M22
129	`1280216`	Gasket, plate, drain, MP10	`1280230`	Bolt 7/8"-9UNCX3.15"
130	`1280217`	SCREW 1/2"-13UNCX1 3/4"	`1125005`	NUT, HEX, 7/8 - 9UNC - 2B
131	`1280219`	Plate, drain w/ relief, MP10	`1280250`	Gasket, 355 X 341 X δ2, MP 10
132	`1280218`	Plate, drain, MP10	`1125007`	FLANGE, BLIND SUCTION, MP10/13/16, WFT
133	`1280226`	Bolt 5/8"-11UNCX1 3/4"	`1125009`	COVER, FLANGE, SUCTION MANIFOLD, MP10, WFT
134	`1280221`	Cover, window, profile, MP10	`1125010`	BAG, AIR, SUCTION MANIFOLD, MP10
135	`1280222`	Gasket, cover, window, profile, MP10	`1280284`	Nut, 1 1/2"-8UNC-2B
136	`1280223`	Gasket, flat, 14, MP10	`1280252`	Gasket, M39, MP10
137	`1280224`	Meter, pressure, 60x0-145psi, MP10	`1125015`	NUT, HEX, 1 1/4 - 8UNC - 2B
138	`1280225`	Chassis, frame, MP10	`1125017`	NUT, HEX, 1 3/8 - 8UNC - 2B
139	`1280199`	Bolt 1"-8NCX3"	`1280253`	Assembly, block discharge, MP10
140	`1280205`	Nut 1"-8UNC-2B	`1280254`	Block, discharge, MP10
141	`1280228`	Washer, M26	`1280255`	Filter, discharge, MP10
142	`1280229`	Hood, canvas, MP10	`1280302`	Connector, block, discharge, MP10
143	`908382`	ASSEMBLY, CRANKSHAFT, MP10, WFT	`1280257`	Flange, blind, discharge block, MP10
144	`908887`	COVER, MAIN BEARING, MP10, WFT	`1280258`	Flange, discharge, MP10
145	`1124646`	CARRIER, BEARING LEFT, MP10, WFT	`1280303`	Connector, flange, MP10
146	`1124651`	GASKET, MAIN BEARING COVER, MP10, WFT	`1280260`	Ring, seal, M95.25, MP10
147	`1124655`	RETAINER, INNER RACE, OUTBOARD BRG, MP10, WFT	`1280261`	Flange, welded, cinnector bend, MP10
148	`1124656`	RETAINER, OUTER RACE, ECC. BRG, MP10, WFT	`1280262`	Ring, seal, M161.93, MP10
149	`908362`	STRAP, ECCENTRIC, MP10, WFT	`1280263`	Ring, seal, M161.94, MP10
150	`1124658`	RETAINER, CRANKSHAFT BRG. INNER, MP10, WFT	`1280306`	Bolt, 1 1/2"-8UNC-12UNCX180
151	`908355`	CRANKSHAFT, MP10, WFT	`1280267`	Nut, 1 1/2"-8UNC-2B
152	`1124660`	RETAINER, INNER RACE, CENTER BRG, MP10, WFT	`1280312`	Stud, 7/8"-9UNCX145
153	`908357`	GEAR, ECCENTRIC RING, BIG, MP10, WFT	`1280282`	Nut, 7/8”-9UNC-2B
154	`1124662`	CAPSCREW, 1 1/2 - 8UNC X 4 1/2	`1280264`	Bolt, 7/8"-9UNC-1 1/2"
155	`1124664`	NUT, LOCK, 11/2 - 8UNC	`1280270`	Assembly, system, lubricating, MP10
156	`1124666`	SPACER, MAIN BRG, MP10, WFT	`1280271`	Pump, lubricating, 2S, MP10
157	`1124668`	CARRIER, BEARING, RIGHT, MP10, WFT	`1280273`	Sleeve, taper, lubricating, MP10
158	`1124669`	RETAINER, OUTER RACE, MAIN BRG, MP10, WFT	`1280275`	Gear, M9, lubricating, MP10
159	`1124677`	CAPSCREW, DRILLED HEAD, 5/8 - 11UNC X 1 1/2	`1280276`	Strainer, lubricating, wo/ tube, MP10
160	`1124695`	RETAINER, INNER RACE, MAIN BRG, MP10, WFT	`1280278`	Connector, 1/2"-3/4"-16UNC
161	`1280235`	Bolt 2 1/2"-8UNCX15.2"	`1280279`	Connector, 3/8"-9/16-16UNC
162	`1280231`	Screw, allen 5/8"-11UNCX2 1/2"	`1280304`	Connector, 1/2"-15/16-16UNC
163	`1280232`	Bearing, 929/558.8QV, MP10	`1280280`	Elbow, connector, Z 1/4"X9/16-16UNC
164	`1280233`	Bearing, 4053156HY, MP10	`1280281`	Elbow, connector, Z 3/8"X9/16-16UNC
165	`908356`	ASSEMBLY, PINION SHAFT, MP10, WFT	`1280251`	Nut, 15/16"-16UNC
166	`1124713`	KEY, 2IN X 2IN X 8IN	`1280251`	Nut, 3/4"-16UNC
167	`1124723`	SHAFT, PINION, MP10, WFT	`1280285`	Nut, M8.2X9/16"-16UNC
168	`1124724`	RING, OIL SEAL WEAR, MP10, WFT	`1280286`	Tube, copper, M8
169	`1124725`	CARRIER, OIL SEAL, MP10, WFT	`1280287`	Tube, copper, M10
170	`1124727`	GASKET, OIL SEAL CARRIER, MP10, WFT	`1280288`	Tube, copper, M12
171	`1124728`	GASKET, OIL SEAL CARRIER, MP10, WFT	`1280289`	Tube, copper, M16
172	`1124729`	CARRIER, PINION BEARING, MP10, WFT	`1125449`	ASSEMBLY, VALVE, LEVER TYPE HIGH PRESSURE RELIEVE, MP10, WFT
173	`1124731`	CAPSCREW, HEX HEAD, 1/2 - 13UNC X 1 3/8	`1125460`	BLOCK, FLUID CYLINDER , RELIEF VALVE, MP10, WFT
174	`1124732`	CAPSCREW, HEX HEAD, 7/8 - 9UNC X 2	`1125459`	PISTON, RELIEF VALVE, MP10, WFT
175	`1124733`	SEAL, OIL, 8.5 X 10.5 X 0.625	`1125455`	BODY, VALVE, MP10, WFT
176	`908359`	BEARING, PINION SHAFT E32840H, MP10, WFT	`1125461`	ROD, VALVE, MP10, WFT
177	`885578`	WASHER, LOCK, M22	`1125466`	PLATE, DAMPING, RELIEF VALVE, MP10, WFT
178	`1124735`	WASHER, LOCK, M14	`1125484`	PIN, LONG, MP10, WFT
179	`1280234`	Jigger, manual, MP10	`1128826`	LOCK WASHER, RELIEF VALVE, MP10 WFT
180	`1280238`	Bolt 5/8"-11UNCX2"	`1125482`	CAGE, RELIEF VALVE, MP10, WFT
181	`1124872`	ASSEMBLY, CROSSHEAD, MP10, WFT	`1125493`	CUTTER, RELIEF VALVE, MP10, WFT
182	`908368`	CROSSHEAD, MP10, WFT	`1125490`	PIN, SAFETY, RELIEF VALVE, MP10, WFT
183	`1124876`	GUIDE, CROSSHEAD UPPER, MP10, WFT	`1125486`	PIN, SHORT, RELIEF VALVE, MP10, WFT
184	`1280236`	Plug, lube port crosshead MP10	`1125494`	PIN, RETAINING, RELIEF VALVE, MP10, WFT
185	`1124881`	BOX, DIAPHRAM STUFFING, MP10, WFT	`1125485`	WASHER, FLAT, M12
186	`1124882`	GASKET, DIAPHRAM STUFFING BOX, MP10, WFT	`1125456`	PIN, GROOVED, MP10, WFT
187	`1123534`	SPRING, DIAPHRAM STUFFING BOX, MP10, WFT	`1280290`	Assembly, system, hose, MP10
188	`1124884`	NIPPLE, PIPE, 3/8 X 2, MP10, WFT	`1280291`	Assembly, tank, water, MP10
189	`1280237`	Plate, baffle, fluid, MP10	`1280292`	Pump, hose, MP10
190	`908378`	EXTENSION, CROSSHEAD, MP10, WFT	`1280293`	Flange, pump, hose, MP10
191	`908381`	PIN, CROSSHEAD, MP10, WFT	`1280294`	Seat, pump, hose, MP10
192	`1124886`	CAPSCREW, HEX HEAD, DRILLED, 1 - 8UNC X 2 1/2	`1280295`	Cover, pump, hose, MP10
193	`1124887`	GUIDE, CROSSHEAD LOWER, MP10, WFT	`1280296`	Belt, pump, hose, 3048, MP10
194	`1124888`	PLATE, LOCKING, CROSSHEAD GUIDE, MP10, WFT	`1280297`	Tube, main, hose, 3049, MP10
195	`1124885`	BAFFLE, FLUID DISC, MP10, WFT, RUBBER	`1280299`	Hose 5/8"
196	`1280249`	Bolt 3/8"-16UNCX1 1/2'	`1280298`	Hose 1"
197	`1124901`	RETAINER, RING, SEAL DIAPHRAM STUFFING BOX, MP10, WFT	`1280300`	Sheave, hose, MP10
198	`1124906`	CAPSCREW, SOCKET HEAD, 3/4 - 10UNC X 2 1/4	`1280277`	Connector, Z1"X1 1/2"-12UNC
199	`509759`	LOCTITE THREADLOCKER 277	`1280259`	Connector, exteror, NPT, Z1"XZ1" MP10
200	`1124917`	WIRE, ZINC PLATED CS, L=300mm	`1280301`	Connector, inner, NPT, Z1", MP10
201	`1124911`	RETAINER, CROSSHEAD PIN, MP10, WFT	`1280256`	Connector, 3/8"X9/16"-16UNCX2"
202	`908364`	BEARING, CROSSHEAD 254836H, MP10, WFT	`1280305`	Elbow, connector, NPT, Z1"XZ1"X90°
203	`1124908`	GASKET, DIAGHRAM PLATE, MP10, WFT	`1280269`	Bolt, 1/2"-13UNCX2 1/2"
204	`907304`	SEAL, DOUBLE LIP, 4.5 X 5.5 X 0.5, MP10, WFT	`1280251`	Nut, 1/2"-13UNC-2B
205	`1280311`	Screw, allen 1"-8UNCX2 1/2"	`1280308`	Bullnose, Z1", MP10
206	`1213382`	ASSEMBLY, MODULE, FLUID CYLINDER, MP10	`1125503`	ASSEMBLY, DISCHARGE DAMPENER (KB-75), MP SERIES WFT
207	`889399`	MODULE, FLUID CYLINDER, MP10 WFT, 4135, NICKLE COATING	`1280309`	Window, inspection, pulsation dampner, MP10
208	`1124935`	RING, THREAD, MP10, WFT	`1128810`	TEE, CHARGING, PULSATION DAMPENER, MP SERIES
209	`1124936`	HEAD, CYLINDER, MP10, WFT	`1280310`	Botl, connection, pulsation dampner, MP10
210	`1124937`	SEAL, CLYLINER, MP10, WFT	`1128809`	NUT, COMPRESSION, PULSATION DAMPENER, MP SERIES
211	`1124938`	PLUG, CYLINDER HEAD, MP10, WFT	`1128816`	PLUG, INLET, PULSATION DAMPENER, MP SERIES
212	`1124948`	CAGE, LINER, MP10, WFT	`1128789`	VALVE, CHECK, MP SERIES WFT
213	`1124940`	ORING, 92.5 X 3.55, HNBR	`474930`	GAUGE, 0 - 5000 PSI, BACK MOUNT LIQUID FILLED
214	`1124941`	MANIFOLD, DISCHARGE, MP10, WFT	`1125504`	COVER, TOP, DAMPENER, MP SERIES WFT
215	`1124942`	SEAL, VALVE COVER, MP10, WFT	`1122482`	BLADDER, DAMPENER, MP SERIES WFT
216	`1124944`	NUT, HEX, 1 1/2 - 8UNC - 2B	`1128798`	PLATE, FILTER, PULSATION DAMPENER, MP SERIES
217	`1124947`	COVER, VALVE, MP10, WFT	`1128797`	HOUSING, PULSATION DAMPENER, MP SERIES
218	`1124954`	GUIDE, VALVE, UPPER, MP10, WFT	`1280239`	Screw, allen, 5/8"-11UNCX2"
219	`1280240`	Cylinder, Hydraulic, MP10	`1280266`	Stud, 1 1/2"-8UNC-12UNCX180
220	`1124984`	RETAINER, UPPER VALVE GUIDE, MP10, WFT	`1280307`	Nut, 1 1/2"-8UNC-2B
221	`1124988`	RETAINER SCREW 3/8"-16UNC X 25
Weatherford MP-10 reference document: MP10 (2)
222	`1128570`	GASKET, COVER, CLEAN OUT UPPER, POWER END, MP10 WFT	`1125010`	BAG, AIR, SUCTION MANIFOLD, MP10
223	`1128571`	GASKET, COVER, REAR POWER END, MP10 WFT	`1128801`	RING, SEAL, R39MM, PULSATION DAMPENER, MP SERIES
224	`1128572`	GASKET, COVER, C-E INSPECTION, MP10 WFT	`1122482`	BLADDER, DAMPENER, MP SERIES WFT
225	`1128573`	GASKER, REAR INSPECTION COVER, POWER END, MP10 WFT	`1128812`	SEAL, CAP, PULSATION DAMPENER, MP SERIES, COPPER
226	`1128577`	GASKET, GEAR CASE COVER, MP10 WFT	`1125410`	5.00IN LINER, MP8/10, WFT
227	`1124651`	GASKET, MAIN BEARING COVER, MP10, WFT	`1125415`	ASSEMBLY, PISTON, 5.00IN, SERIES B, MP8/10, WFT, RUBBER
228	`1124733`	SEAL, OIL, 8.5 X 10.5 X 0.625	`1125416`	ASSEMBLY, PISTON, 5.00IN,1-5/8IN BORE, MP8/10, WFT, RUBBER BONDED
229	`1124882`	GASKET, DIAPHRAM STUFFING BOX, MP10, WFT	`1125417`	ASSEMBLY, PISTON, 5.00IN, 1-5/8IN BORE, MP8/10, WFT, URETHANE BOND
230	`1124885`	BAFFLE, FLUID DISC, MP10, WFT, RUBBER	`1125418`	ASSEMBLY, PISTON, 5.00IN, SERIES B, MP8/10, WFT, HIGH TEMP
231	`908378`	EXTENSION, CROSSHEAD, MP10, WFT	`1125420`	5-1/2IN LINER, MP8/10, WFT
232	`1124908`	GASKET, DIAGHRAM PLATE, MP10, WFT	`1125421`	ASSEMBLY, PISTON, 5-1/2IN, SERIES B, MP8/10, WFT, RUBBER
233	`907304`	SEAL, DOUBLE LIP, 4.5 X 5.5 X 0.5, MP10, WFT	`1125423`	ASSEMBLY, PISTON, 5-1/2IN, 1-5/8IN BORE, MP8/10, WFT, RUBBER BONDED
234	`1124937`	SEAL, CLYLINER, MP10, WFT	`1125424`	ASSEMBLY, PISTON, 5-1/2IN, 1-5/8IN BORE, MP8/10, WFT, URETHANE BOND
235	`1124940`	ORING, 92.5 X 3.55, HNBR	`1125425`	ASSEMBLY, PISTON, 5-1/2IN, SERIES B, MP8/10, WFT, HIGH TEMP
236	`1124942`	SEAL, VALVE COVER, MP10, WFT	`1125427`	6.00IN LINER, MP8/10, WFT
237	`1124954`	GUIDE, VALVE, UPPER, MP10, WFT	`1125429`	ASSEMBLY, PISTON, 6.00IN, SERIES B, MP8/10, WFT, RUBBER
238	`1124955`	SPRING, VALVE GUIDE, MP10, WFT	`1125432`	ASSEMBLY, PISTON, 6.00IN, 1-5/8 BORE, MP8/10, WFT, RUBBER BONDED
239	`1124989`	SPRING, VALVE, MP10, WFT	`1125433`	ASSEMBLY, PISTON, 6.00IN, 1-5/8IN BORE, MP8/10, WFT, URETHANE BOND
240	`1124991`	ASSEMBLY, VALVE, MP10, WFT	`1125434`	ASSEMBLY, PISTON, 6.00IN, SERIES B, MP8/10, WFT, HIGH TEMP
241	`1124992`	NUT, LOCK, PISTON, MP10, WFT	`1125435`	6-1/2IN LINER. MP8/10, WFT
242	`1124994`	ROD, PISTON, MP10, WFT	`1125436`	ASSEMBLY, PISTON, 6-1/2IN, SERIES L, MP8/10, WFT, RUBBER
243	`1124997`	CLAMP, PISTON ROD, MP10, WFT	`1125437`	ASSEMBLY, PISTON, 6-1/2IN, 1-5/8IN BORE, MP8/10, WFT, RUBBER BONDED
244	`1124998`	GUIDE,GUIDE ASSY, SUCTION VALVE	`1125439`	ASSEMBLY, PISTON, 6-1/2IN, 1-5/8IN BORE, MP8/10, WFT, URETHANE BOND
245	`1125000`	ORING, 185 X 7, HNBR	`1125441`	ASSEMBLY, PISTON, 6-1/2IN, SERIES L, MP8/10, WFT, HIGH TEMP
Weatherford MP-10 parts catalogue / manual
246	`1317095`	Chrome iron liner, 4.000 inch	`1317734`	Rubber liner gasket, 5.500 inch
247	`1317107`	Zirconia ceramic liner, 4.000 inch	`1317736`	Urethane liner gasket, 5.500 inch
248	`1317734`	Rubber liner gasket, 4.000 inch	`1279819`	Chrome iron liner, 6.000 inch
249	`1317736`	Urethane liner gasket, 4.000 inch	`1317319`	Zirconia ceramic liner, 6.000 inch
250	`1317155`	Chrome iron liner, 4.500 inch	`1317734`	Rubber liner gasket, 6.000 inch
251	`1317166`	Zirconia ceramic liner, 4.500 inch	`1317736`	Urethane liner gasket, 6.000 inch
252	`1317734`	Rubber liner gasket, 4.500 inch	`1317356`	Chrome iron liner, 6.500 inch
253	`1317736`	Urethane liner gasket, 4.500 inch	`1317365`	Zirconia ceramic liner, 6.500 inch
254	`1279784`	Chrome iron liner, 5.000 inch	`1317734`	Rubber liner gasket, 6.500 inch
255	`1317220`	Zirconia ceramic liner, 5.000 inch	`1317736`	Urethane liner gasket, 6.500 inch
256	`1317734`	Rubber liner gasket, 5.000 inch	`1317375`	Chrome iron liner, 6.750 inch
257	`1317736`	Urethane liner gasket, 5.000 inch	`1317383`	Zirconia ceramic liner, 6.750 inch
258	`1279787`	Chrome iron liner, 5.500 inch	`1317734`	Rubber liner gasket, 6.750 inch
259	`1317271`	Zirconia ceramic liner, 5.500 inch	`1317736`	Urethane liner gasket, 6.750 inch

Technical details and source references

Confirm the installed model, drawing revision and dimensions before ordering. Catalogue quantities do not indicate current stock.

Reference documents and scope

S1 — Weatherford MP-10 parts catalogue / manual. Reference file: MP-10.pdf.
S2 — Weatherford MP-10, Chapter 7 excerpt from manual 02034085. Reference file: MP-10 动力端+液力端配件.pdf.
S3 — Weatherford MP-10 reference document: MP10. Reference file: MP10.pdf.
S4 — Weatherford MP-10 reference document: MP10 (2). Reference file: MP10 (2).pdf.

PDF page numbers count from the first page of each reference file. Brand names identify the equipment or catalogue source. A listed number does not establish interchangeability, original-manufacturer authorisation, stock or a delivery commitment. Send the nameplate, complete reference, quantity and drawing revision for a parts review.

The Weatherford MP-10 two-piece fluid end has separate suction and discharge components, with individual references for bare and studded modules. A purchasing list should identify this arrangement before comparing module or seal quotations. The supplied April 2013 manual 02034085 provides the reference structure used here; it should be matched to the installed pump and its serial-specific specification sheet.

Source-specific model facts

Field	Value in the cited source
Reference pump type	Single-acting triplex piston pump
Maximum rated power in source	1,000 HP
Maximum rated speed in source	140 RPM
Stroke length	10 in.
Pressure examples from source chart	4.5-in. liner: 5,000 psi; 6.75-in. liner: 2,300 psi
Manual reference	02034085; April 2013; Two Piece Fluid End

These historical source values identify the illustrated configuration. Confirm the installed unit and its current equipment specification before selecting replacement parts.

Identify bare, studded and complete assemblies

The illustrated fluid-end assembly is 1924827 and its module assembly is 1316959. The module bill of material distinguishes bare suction module 1848450 from studded suction module 1317030, and bare discharge module 1848477 from studded discharge module 1317004. The words "module" and "fluid end" therefore need their full assembly description when included in an RFQ.

The same drawing separates the piston rod, studded sub rod, liner-retainer flange and liner seal. Its two-column parts table must be read within each column block: the piston rod is 1317518, the sub rod is 1317865 and the liner-retainer flange is 1917433. Liner material and gasket choices are listed in a separate table. A buyer should not substitute a seal number simply because the liner bore matches another MP-series pump.

What to send with the parts enquiry

For a matched request, provide the model and serial number, confirmation of the two-piece fluid end, the manual edition, item reference and quantity. Add the installed liner bore and material, photographs of module markings, and a list of components expected in each assembly. State whether replacement studs and nuts are required. Pricing and availability should be obtained for the current request rather than carried forward from a historical parts document.

For related purchasing information, see mud pump spare parts matching and liners, pistons, valves and seats. You can send your model and part references to Pratt Oil for component and document matching.

The listed numbers are selected source references, not a complete bill of material or a confirmation of stock, origin or interchangeability.

1924827 — S1 , PDF p. 113 — MP-10 Two Piece Fluid End; April 2013 manual
1316959 — S1 , PDF p. 113 — MP-10 Two Piece Fluid End; April 2013 manual
0766960 — S1 , PDF p. 113 — MP-10 Two Piece Fluid End; April 2013 manual
1124941 — S1 , PDF p. 113 — MP-10 Two Piece Fluid End; April 2013 manual
0767109 — S1 , PDF p. 113 — MP-10 Two Piece Fluid End; April 2013 manual
1125003 — S1 , PDF p. 113 — MP-10 Two Piece Fluid End; April 2013 manual
1738845 — S1 , PDF p. 114 — MP-10 module 1316959; left/right BOM blocks checked separately
1133856 — S1 , PDF p. 114 — MP-10 module 1316959; left/right BOM blocks checked separately
1124997 — S1 , PDF p. 114 — MP-10 module 1316959; left/right BOM blocks checked separately
1917433 — S1 , PDF p. 114 — MP-10 module 1316959; left/right BOM blocks checked separately
1317079 — S1 , PDF p. 114 — MP-10 module 1316959; left/right BOM blocks checked separately
1317089 — S1 , PDF p. 114 — MP-10 module 1316959; left/right BOM blocks checked separately
1317734 — S1 , PDF p. 114 — MP-10 module 1316959; left/right BOM blocks checked separately
1317766 — S1 , PDF p. 114 — MP-10 module 1316959; left/right BOM blocks checked separately
1317809 — S1 , PDF p. 114 — MP-10 module 1316959; left/right BOM blocks checked separately
1317865 — S1 , PDF p. 114 — MP-10 module 1316959; left/right BOM blocks checked separately
1317889 — S1 , PDF p. 114 — MP-10 module 1316959; left/right BOM blocks checked separately
1317905 — S1 , PDF p. 114 — MP-10 module 1316959; left/right BOM blocks checked separately
1317966 — S1 , PDF p. 114 — MP-10 module 1316959; left/right BOM blocks checked separately
1318075 — S1 , PDF p. 114 — MP-10 module 1316959; left/right BOM blocks checked separately
1317518 — S1 , PDF p. 114 — MP-10 module 1316959; left/right BOM blocks checked separately
1323512 — S1 , PDF p. 114 — MP-10 module 1316959; left/right BOM blocks checked separately
1848450 — S1 , PDF p. 114 — MP-10 module 1316959; left/right BOM blocks checked separately
1317030 — S1 , PDF p. 114 — MP-10 module 1316959; left/right BOM blocks checked separately
1848477 — S1 , PDF p. 114 — MP-10 module 1316959; left/right BOM blocks checked separately
1317004 — S1 , PDF p. 114 — MP-10 module 1316959; left/right BOM blocks checked separately
1317926 — S1 , PDF p. 114 — MP-10 module 1316959; left/right BOM blocks checked separately
1317949 — S1 , PDF p. 114 — MP-10 module 1316959; left/right BOM blocks checked separately
1317095 — S1 , PDF p. 115 — MP-10 liner table; size/material columns retained
1317107 — S1 , PDF p. 115 — MP-10 liner table; size/material columns retained
1317734 — S1 , PDF p. 115 — MP-10 liner table; size/material columns retained
1317736 — S1 , PDF p. 115 — MP-10 liner table; size/material columns retained
1280179 — S1 , PDF p. 108 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1280225 — S1 , PDF p. 108 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1280222 — S1 , PDF p. 108 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1280221 — S1 , PDF p. 108 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
0908887 — S1 , PDF p. 108 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124651 — S1 , PDF p. 108 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1280235 — S1 , PDF p. 108 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1280203 — S1 , PDF p. 108 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124696 — S1 , PDF p. 108 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1280223 — S1 , PDF p. 108 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
0908382 — S1 , PDF p. 109 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124655 — S1 , PDF p. 109 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124677 — S1 , PDF p. 109 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124656 — S1 , PDF p. 109 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1280232 — S1 , PDF p. 109 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
0908362 — S1 , PDF p. 109 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
0908355 — S1 , PDF p. 109 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
0908357 — S1 , PDF p. 109 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124662 — S1 , PDF p. 109 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124664 — S1 , PDF p. 109 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124695 — S1 , PDF p. 110 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124677 — S1 , PDF p. 110 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124669 — S1 , PDF p. 110 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1280233 — S1 , PDF p. 110 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124646 — S1 , PDF p. 110 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124668 — S1 , PDF p. 110 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124666 — S1 , PDF p. 110 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
0908356 — S1 , PDF p. 111 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124731 — S1 , PDF p. 111 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124735 — S1 , PDF p. 111 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124725 — S1 , PDF p. 111 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124727 — S1 , PDF p. 111 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124724 — S1 , PDF p. 111 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124733 — S1 , PDF p. 111 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
0908359 — S1 , PDF p. 111 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124732 — S1 , PDF p. 111 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
0215371 — S1 , PDF p. 111 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124729 — S1 , PDF p. 111 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124723 — S1 , PDF p. 111 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124713 — S1 , PDF p. 111 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1010502 — S1 , PDF p. 111 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1280234 — S1 , PDF p. 111 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1280238 — S1 , PDF p. 111 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124872 — S1 , PDF p. 112 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124886 — S1 , PDF p. 112 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124878 — S1 , PDF p. 112 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124911 — S1 , PDF p. 112 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
0908381 — S1 , PDF p. 112 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
0908364 — S1 , PDF p. 112 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
0908368 — S1 , PDF p. 112 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124876 — S1 , PDF p. 112 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124887 — S1 , PDF p. 112 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124906 — S1 , PDF p. 112 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
0908378 — S1 , PDF p. 112 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1134267 — S1 , PDF p. 112 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124885 — S1 , PDF p. 112 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124882 — S1 , PDF p. 112 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124881 — S1 , PDF p. 112 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1317770 — S1 , PDF p. 112 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1123534 — S1 , PDF p. 112 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124898 — S1 , PDF p. 112 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1280249 — S1 , PDF p. 112 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124901 — S1 , PDF p. 112 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124888 — S1 , PDF p. 112 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
0908042 — S1 , PDF p. 112 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124917 — S1 , PDF p. 112 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
0509759 — S1 , PDF p. 112 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1924827 — S1 , PDF p. 113 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1316959 — S1 , PDF p. 113 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
0766960 — S1 , PDF p. 113 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1124941 — S1 , PDF p. 113 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
0767109 — S1 , PDF p. 113 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1236089 — S1 , PDF p. 113 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1125002 — S1 , PDF p. 113 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1125003 — S1 , PDF p. 113 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1125010 — S1 , PDF p. 113 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1316959 — S1 , PDF p. 114 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1317966 — S1 , PDF p. 114 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 16; Source catalogue reference
1738845 — S1 , PDF p. 114 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1318075 — S1 , PDF p. 114 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 16; Source catalogue reference
1133856 — S1 , PDF p. 114 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1317518 — S1 , PDF p. 114 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 16; Source catalogue reference
1317854 — S1 , PDF p. 114 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1383133 — S1 , PDF p. 114 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 16; Source catalogue reference
1124997 — S1 , PDF p. 114 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1323512 — S1 , PDF p. 114 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 16; Source catalogue reference
1917433 — S1 , PDF p. 114 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1418004 — S1 , PDF p. 114 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 16; Source catalogue reference
1317079 — S1 , PDF p. 114 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1418005 — S1 , PDF p. 114 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 16; Source catalogue reference
1317089 — S1 , PDF p. 114 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1738844 — S1 , PDF p. 114 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 16; Source catalogue reference
1848450 — S1 , PDF p. 114 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 16; Source catalogue reference
1317734 — S1 , PDF p. 114 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1317030 — S1 , PDF p. 114 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 16; Source catalogue reference
1317766 — S1 , PDF p. 114 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1848477 — S1 , PDF p. 114 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 16; Source catalogue reference
1317809 — S1 , PDF p. 114 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1317004 — S1 , PDF p. 114 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 16; Source catalogue reference
1317865 — S1 , PDF p. 114 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1317926 — S1 , PDF p. 114 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 16; Source catalogue reference
1317889 — S1 , PDF p. 114 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1317949 — S1 , PDF p. 114 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 16; Source catalogue reference
1317905 — S1 , PDF p. 114 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1738846 — S1 , PDF p. 114 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 16; Source catalogue reference
1317518 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1133856 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1323512 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1317865 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1316936 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1149771 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
0766945 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 4; Source catalogue reference
1317542 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 2, column 7; exact source matrix type/material: Bonded DD Urethane; Source catalogue reference
1317541 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 2, column 10; exact source matrix type/material: Bonded DD HT Urethane; Source catalogue reference
1317543 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 2, column 13; exact source matrix type/material: Bonded Nitrile; Source catalogue reference
1317544 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 2, column 16; exact source matrix type/material: Replaceable Nitrile Complete; Source catalogue reference
1317520 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 2, column 19; exact source matrix type/material: Replaceable Nitrile Rubber; Source catalogue reference
1317550 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 2, column 7; exact source matrix type/material: Bonded DD Urethane; Source catalogue reference
1317549 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 2, column 10; exact source matrix type/material: Bonded DD HT Urethane; Source catalogue reference
1317551 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 2, column 13; exact source matrix type/material: Bonded Nitrile; Source catalogue reference
1317552 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 2, column 16; exact source matrix type/material: Replaceable Nitrile Complete; Source catalogue reference
1317522 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 2, column 19; exact source matrix type/material: Replaceable Nitrile Rubber; Source catalogue reference
1317558 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 2, column 7; exact source matrix type/material: Bonded DD Urethane; Source catalogue reference
1317557 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 2, column 10; exact source matrix type/material: Bonded DD HT Urethane; Source catalogue reference
1317559 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 2, column 13; exact source matrix type/material: Bonded Nitrile; Source catalogue reference
1317560 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 2, column 16; exact source matrix type/material: Replaceable Nitrile Complete; Source catalogue reference
1317524 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 2, column 19; exact source matrix type/material: Replaceable Nitrile Rubber; Source catalogue reference
1317566 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 2, column 7; exact source matrix type/material: Bonded DD Urethane; Source catalogue reference
1317565 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 2, column 10; exact source matrix type/material: Bonded DD HT Urethane; Source catalogue reference
1317567 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 2, column 13; exact source matrix type/material: Bonded Nitrile; Source catalogue reference
1317568 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 2, column 16; exact source matrix type/material: Replaceable Nitrile Complete; Source catalogue reference
1317526 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 2, column 19; exact source matrix type/material: Replaceable Nitrile Rubber; Source catalogue reference
1317574 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 2, column 7; exact source matrix type/material: Bonded DD Urethane; Source catalogue reference
1317573 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 2, column 10; exact source matrix type/material: Bonded DD HT Urethane; Source catalogue reference
1317575 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 2, column 13; exact source matrix type/material: Bonded Nitrile; Source catalogue reference
1317576 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 2, column 16; exact source matrix type/material: Replaceable Nitrile Complete; Source catalogue reference
1317528 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 2, column 19; exact source matrix type/material: Replaceable Nitrile Rubber; Source catalogue reference
1317582 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 2, column 7; exact source matrix type/material: Bonded DD Urethane; Source catalogue reference
1317581 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 2, column 10; exact source matrix type/material: Bonded DD HT Urethane; Source catalogue reference
1317584 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 2, column 13; exact source matrix type/material: Bonded Nitrile; Source catalogue reference
1317585 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 2, column 16; exact source matrix type/material: Replaceable Nitrile Complete; Source catalogue reference
1317530 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 2, column 19; exact source matrix type/material: Replaceable Nitrile Rubber; Source catalogue reference
1317587 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 2, column 7; exact source matrix type/material: Bonded DD Urethane; Source catalogue reference
1317586 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 2, column 10; exact source matrix type/material: Bonded DD HT Urethane; Source catalogue reference
1317588 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 2, column 13; exact source matrix type/material: Bonded Nitrile; Source catalogue reference
1317589 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 2, column 16; exact source matrix type/material: Replaceable Nitrile Complete; Source catalogue reference
1317531 — S1 , PDF p. 116 — MP-10; two-piece fluid end; April 2013 manual; source table 2, column 19; exact source matrix type/material: Replaceable Nitrile Rubber; Source catalogue reference
1318051 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 7; exact source matrix type/material: Full Open; Source catalogue reference
1318052 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 10; exact source matrix type/material: Full Open HT; Source catalogue reference
1318053 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 7; exact source matrix type/material: Full Open; Source catalogue reference
1318048 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 13; exact source matrix type/material: 3 Web CG; Source catalogue reference
1318047 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 16; exact source matrix type/material: 3 Web CG HT; Source catalogue reference
1318050 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 19; exact source matrix type/material: 4 Web CG; Source catalogue reference
1318049 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 22; exact source matrix type/material: 4 Web CG HT; Source catalogue reference
1317993 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 7; exact source matrix type/material: Full Open; Source catalogue reference
1317985 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 13; exact source matrix type/material: 3 Web CG; Source catalogue reference
1317988 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 16; exact source matrix type/material: 3 Web CG HT; Source catalogue reference
1317991 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 19; exact source matrix type/material: 4 Web CG; Source catalogue reference
1317992 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 22; exact source matrix type/material: 4 Web CG HT; Source catalogue reference
1318028 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 7; exact source matrix type/material: Full Open; Source catalogue reference
1318028 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 10; exact source matrix type/material: Full Open HT; Source catalogue reference
1318026 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 19; exact source matrix type/material: 4 Web CG; Source catalogue reference
1318026 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 22; exact source matrix type/material: 4 Web CG HT; Source catalogue reference
1318038 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 7; exact source matrix type/material: Full Open; Source catalogue reference
1318038 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 10; exact source matrix type/material: Full Open HT; Source catalogue reference
1318032 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 13; exact source matrix type/material: 3 Web CG; Source catalogue reference
1318032 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 16; exact source matrix type/material: 3 Web CG HT; Source catalogue reference
1318008 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 7; exact source matrix type/material: Full Open; Source catalogue reference
1318008 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 10; exact source matrix type/material: Full Open HT; Source catalogue reference
1318006 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 13; exact source matrix type/material: 3 Web CG; Source catalogue reference
1318006 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 16; exact source matrix type/material: 3 Web CG HT; Source catalogue reference
1318007 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 19; exact source matrix type/material: 4 Web CG; Source catalogue reference
1318007 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 22; exact source matrix type/material: 4 Web CG HT; Source catalogue reference
1317875 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 7; exact source matrix type/material: Full Open; Source catalogue reference
1317875 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 10; exact source matrix type/material: Full Open HT; Source catalogue reference
1317872 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 13; exact source matrix type/material: 3 Web CG; Source catalogue reference
1317872 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 16; exact source matrix type/material: 3 Web CG HT; Source catalogue reference
1317874 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 19; exact source matrix type/material: 4 Web CG; Source catalogue reference
1317874 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 22; exact source matrix type/material: 4 Web CG HT; Source catalogue reference
1241141 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 7; exact source matrix type/material: Full Open; Source catalogue reference
1241141 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 10; exact source matrix type/material: Full Open HT; Source catalogue reference
1241141 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 13; exact source matrix type/material: 3 Web CG; Source catalogue reference
1241141 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 16; exact source matrix type/material: 3 Web CG HT; Source catalogue reference
1241141 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 19; exact source matrix type/material: 4 Web CG; Source catalogue reference
1241141 — S1 , PDF p. 117 — MP-10; two-piece fluid end; April 2013 manual; source table 1, column 22; exact source matrix type/material: 4 Web CG HT; Source catalogue reference
1280179 — S3 , PDF p. 16 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280196 — S3 , PDF p. 16 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280197 — S3 , PDF p. 16 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280220 — S3 , PDF p. 16 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280200 — S3 , PDF p. 16 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280201 — S3 , PDF p. 16 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280199 — S3 , PDF p. 16 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280203 — S3 , PDF p. 16 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280204 — S3 , PDF p. 16 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280227 — S3 , PDF p. 16 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280206 — S3 , PDF p. 16 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280207 — S3 , PDF p. 16 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280208 — S3 , PDF p. 16 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280199 — S3 , PDF p. 16 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280210 — S3 , PDF p. 16 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280212 — S3 , PDF p. 16 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280213 — S3 , PDF p. 16 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280214 — S3 , PDF p. 16 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280215 — S3 , PDF p. 16 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280216 — S3 , PDF p. 16 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280217 — S3 , PDF p. 16 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280219 — S3 , PDF p. 16 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280218 — S3 , PDF p. 16 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280226 — S3 , PDF p. 16 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280221 — S3 , PDF p. 16 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280222 — S3 , PDF p. 16 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280223 — S3 , PDF p. 16 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280224 — S3 , PDF p. 16 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280225 — S3 , PDF p. 16 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280199 — S3 , PDF p. 16 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280205 — S3 , PDF p. 16 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280228 — S3 , PDF p. 16 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280229 — S3 , PDF p. 16 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
908382 — S3 , PDF p. 17 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
908887 — S3 , PDF p. 17 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124646 — S3 , PDF p. 17 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124651 — S3 , PDF p. 17 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124655 — S3 , PDF p. 17 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124656 — S3 , PDF p. 17 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
908362 — S3 , PDF p. 17 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124658 — S3 , PDF p. 17 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
908355 — S3 , PDF p. 17 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124660 — S3 , PDF p. 17 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
908357 — S3 , PDF p. 17 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124662 — S3 , PDF p. 17 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124664 — S3 , PDF p. 17 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124666 — S3 , PDF p. 17 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124668 — S3 , PDF p. 17 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124669 — S3 , PDF p. 17 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124677 — S3 , PDF p. 17 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124695 — S3 , PDF p. 17 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280235 — S3 , PDF p. 17 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280231 — S3 , PDF p. 17 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280232 — S3 , PDF p. 17 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280233 — S3 , PDF p. 17 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
908356 — S3 , PDF p. 18 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124713 — S3 , PDF p. 18 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124723 — S3 , PDF p. 18 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124724 — S3 , PDF p. 18 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124725 — S3 , PDF p. 18 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124727 — S3 , PDF p. 18 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124728 — S3 , PDF p. 18 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124729 — S3 , PDF p. 18 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124731 — S3 , PDF p. 18 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124732 — S3 , PDF p. 18 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124733 — S3 , PDF p. 18 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
908359 — S3 , PDF p. 18 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
885578 — S3 , PDF p. 18 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124735 — S3 , PDF p. 18 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280234 — S3 , PDF p. 18 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280238 — S3 , PDF p. 18 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124872 — S3 , PDF p. 19 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
908368 — S3 , PDF p. 19 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124876 — S3 , PDF p. 19 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280236 — S3 , PDF p. 19 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124881 — S3 , PDF p. 19 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124882 — S3 , PDF p. 19 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1123534 — S3 , PDF p. 19 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124884 — S3 , PDF p. 19 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280237 — S3 , PDF p. 19 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
908378 — S3 , PDF p. 19 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
908381 — S3 , PDF p. 19 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124886 — S3 , PDF p. 19 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124887 — S3 , PDF p. 19 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124888 — S3 , PDF p. 19 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124885 — S3 , PDF p. 19 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280249 — S3 , PDF p. 19 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124901 — S3 , PDF p. 19 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124906 — S3 , PDF p. 19 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
509759 — S3 , PDF p. 19 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124917 — S3 , PDF p. 19 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124911 — S3 , PDF p. 19 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
908364 — S3 , PDF p. 19 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124908 — S3 , PDF p. 19 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
907304 — S3 , PDF p. 19 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280311 — S3 , PDF p. 19 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1213382 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
889399 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124935 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124936 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124937 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124938 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124948 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124940 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124941 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124942 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124944 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124947 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124954 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280240 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124984 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124988 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280241 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124989 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124991 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124992 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280242 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280243 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280244 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280245 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124994 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280246 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280247 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280248 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124995 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124997 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1124955 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1125000 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1125001 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1125003 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1125002 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280230 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1125005 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280250 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1125007 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1125009 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1125010 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280284 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280252 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1125015 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1125017 — S3 , PDF p. 20 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280253 — S3 , PDF p. 21 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280254 — S3 , PDF p. 21 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280255 — S3 , PDF p. 21 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280302 — S3 , PDF p. 21 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280257 — S3 , PDF p. 21 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280258 — S3 , PDF p. 21 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280303 — S3 , PDF p. 21 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280260 — S3 , PDF p. 21 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280261 — S3 , PDF p. 21 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280262 — S3 , PDF p. 21 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280263 — S3 , PDF p. 21 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280306 — S3 , PDF p. 21 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280267 — S3 , PDF p. 21 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280312 — S3 , PDF p. 21 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280282 — S3 , PDF p. 21 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280264 — S3 , PDF p. 21 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280270 — S3 , PDF p. 22 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280271 — S3 , PDF p. 22 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280273 — S3 , PDF p. 22 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280275 — S3 , PDF p. 22 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280276 — S3 , PDF p. 22 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280278 — S3 , PDF p. 22 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280279 — S3 , PDF p. 22 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280304 — S3 , PDF p. 22 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280280 — S3 , PDF p. 22 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280281 — S3 , PDF p. 22 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280251 — S3 , PDF p. 22 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280251 — S3 , PDF p. 22 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280285 — S3 , PDF p. 22 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280286 — S3 , PDF p. 22 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280287 — S3 , PDF p. 22 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280288 — S3 , PDF p. 22 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280289 — S3 , PDF p. 22 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1125449 — S3 , PDF p. 23 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1125460 — S3 , PDF p. 23 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1125459 — S3 , PDF p. 23 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1125455 — S3 , PDF p. 23 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1125461 — S3 , PDF p. 23 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1125466 — S3 , PDF p. 23 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1125484 — S3 , PDF p. 23 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1128826 — S3 , PDF p. 23 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1125482 — S3 , PDF p. 23 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1125493 — S3 , PDF p. 23 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1125490 — S3 , PDF p. 23 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1125486 — S3 , PDF p. 23 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1125494 — S3 , PDF p. 23 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1125485 — S3 , PDF p. 23 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1125456 — S3 , PDF p. 23 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280290 — S3 , PDF p. 24 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280291 — S3 , PDF p. 24 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280292 — S3 , PDF p. 24 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280293 — S3 , PDF p. 24 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280294 — S3 , PDF p. 24 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280295 — S3 , PDF p. 24 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280296 — S3 , PDF p. 24 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280297 — S3 , PDF p. 24 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280299 — S3 , PDF p. 24 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280298 — S3 , PDF p. 24 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280300 — S3 , PDF p. 24 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280277 — S3 , PDF p. 24 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280259 — S3 , PDF p. 24 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280301 — S3 , PDF p. 24 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280256 — S3 , PDF p. 24 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280305 — S3 , PDF p. 24 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280269 — S3 , PDF p. 24 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280251 — S3 , PDF p. 24 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280308 — S3 , PDF p. 24 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1125503 — S3 , PDF p. 25 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280309 — S3 , PDF p. 25 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1128810 — S3 , PDF p. 25 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280310 — S3 , PDF p. 25 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1128809 — S3 , PDF p. 25 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1128816 — S3 , PDF p. 25 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1128789 — S3 , PDF p. 25 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
474930 — S3 , PDF p. 25 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1125504 — S3 , PDF p. 25 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1122482 — S3 , PDF p. 25 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1128798 — S3 , PDF p. 25 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1128797 — S3 , PDF p. 25 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280239 — S3 , PDF p. 25 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280266 — S3 , PDF p. 25 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1280307 — S3 , PDF p. 25 — MP-10; earlier manual parts tables; not the April 2013 two-piece list; source table 1, column 2; Source catalogue reference
1128570 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 1, column 2; Source catalogue reference
1128571 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 1, column 2; Source catalogue reference
1128572 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 1, column 2; Source catalogue reference
1128573 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 1, column 2; Source catalogue reference
1128577 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 1, column 2; Source catalogue reference
1124651 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 1, column 2; Source catalogue reference
1124733 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 1, column 2; Source catalogue reference
1124882 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 1, column 2; Source catalogue reference
1124885 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 1, column 2; Source catalogue reference
908378 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 1, column 2; Source catalogue reference
1124908 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 1, column 2; Source catalogue reference
907304 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 1, column 2; Source catalogue reference
1124937 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 1, column 2; Source catalogue reference
1124940 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 1, column 2; Source catalogue reference
1124942 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 1, column 2; Source catalogue reference
1124954 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 1, column 2; Source catalogue reference
1124955 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 1, column 2; Source catalogue reference
1124989 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 1, column 2; Source catalogue reference
1124991 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 1, column 2; Source catalogue reference
1124992 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 1, column 2; Source catalogue reference
1124994 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 1, column 2; Source catalogue reference
1124997 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 1, column 2; Source catalogue reference
1124998 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 1, column 2; Source catalogue reference
1125000 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 1, column 2; Source catalogue reference
1125010 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 1, column 2; Source catalogue reference
1128801 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 1, column 2; Source catalogue reference
1122482 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 1, column 2; Source catalogue reference
1128812 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 1, column 2; Source catalogue reference
1125410 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 2, column 2; Source catalogue reference
1125415 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 2, column 2; Source catalogue reference
1125416 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 2, column 2; Source catalogue reference
1125417 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 2, column 2; Source catalogue reference
1125418 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 2, column 2; Source catalogue reference
1125420 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 2, column 2; Source catalogue reference
1125421 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 2, column 2; Source catalogue reference
1125423 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 2, column 2; Source catalogue reference
1125424 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 2, column 2; Source catalogue reference
1125425 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 2, column 2; Source catalogue reference
1125427 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 2, column 2; Source catalogue reference
1125429 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 2, column 2; Source catalogue reference
1125432 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 2, column 2; Source catalogue reference
1125433 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 2, column 2; Source catalogue reference
1125434 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 2, column 2; Source catalogue reference
1125435 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 2, column 2; Source catalogue reference
1125436 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 2, column 2; Source catalogue reference
1125437 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 2, column 2; Source catalogue reference
1125439 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 2, column 2; Source catalogue reference
1125441 — S4 , PDF p. 1 — MP-10; separate recommended-spares reference list; historical prices excluded; source table 2, column 2; Source catalogue reference
1317095 — S1 , PDF p. 115 — MP-10; two-piece fluid end; April 2013 manual; liner matrix; bore 4.000 inch; Chrome iron liner; Source part-number reference
1317107 — S1 , PDF p. 115 — MP-10; two-piece fluid end; April 2013 manual; liner matrix; bore 4.000 inch; Zirconia ceramic liner; Source part-number reference
1317734 — S1 , PDF p. 115 — MP-10; two-piece fluid end; April 2013 manual; liner matrix; bore 4.000 inch; Rubber liner gasket; Source part-number reference
1317736 — S1 , PDF p. 115 — MP-10; two-piece fluid end; April 2013 manual; liner matrix; bore 4.000 inch; Urethane liner gasket; Source part-number reference
1317155 — S1 , PDF p. 115 — MP-10; two-piece fluid end; April 2013 manual; liner matrix; bore 4.500 inch; Chrome iron liner; Source part-number reference
1317166 — S1 , PDF p. 115 — MP-10; two-piece fluid end; April 2013 manual; liner matrix; bore 4.500 inch; Zirconia ceramic liner; Source part-number reference
1317734 — S1 , PDF p. 115 — MP-10; two-piece fluid end; April 2013 manual; liner matrix; bore 4.500 inch; Rubber liner gasket; Source part-number reference
1317736 — S1 , PDF p. 115 — MP-10; two-piece fluid end; April 2013 manual; liner matrix; bore 4.500 inch; Urethane liner gasket; Source part-number reference
1279784 — S1 , PDF p. 115 — MP-10; two-piece fluid end; April 2013 manual; liner matrix; bore 5.000 inch; Chrome iron liner; Source part-number reference
1317220 — S1 , PDF p. 115 — MP-10; two-piece fluid end; April 2013 manual; liner matrix; bore 5.000 inch; Zirconia ceramic liner; Source part-number reference
1317734 — S1 , PDF p. 115 — MP-10; two-piece fluid end; April 2013 manual; liner matrix; bore 5.000 inch; Rubber liner gasket; Source part-number reference
1317736 — S1 , PDF p. 115 — MP-10; two-piece fluid end; April 2013 manual; liner matrix; bore 5.000 inch; Urethane liner gasket; Source part-number reference
1279787 — S1 , PDF p. 115 — MP-10; two-piece fluid end; April 2013 manual; liner matrix; bore 5.500 inch; Chrome iron liner; Source part-number reference
1317271 — S1 , PDF p. 115 — MP-10; two-piece fluid end; April 2013 manual; liner matrix; bore 5.500 inch; Zirconia ceramic liner; Source part-number reference
1317734 — S1 , PDF p. 115 — MP-10; two-piece fluid end; April 2013 manual; liner matrix; bore 5.500 inch; Rubber liner gasket; Source part-number reference
1317736 — S1 , PDF p. 115 — MP-10; two-piece fluid end; April 2013 manual; liner matrix; bore 5.500 inch; Urethane liner gasket; Source part-number reference
1279819 — S1 , PDF p. 115 — MP-10; two-piece fluid end; April 2013 manual; liner matrix; bore 6.000 inch; Chrome iron liner; Source part-number reference
1317319 — S1 , PDF p. 115 — MP-10; two-piece fluid end; April 2013 manual; liner matrix; bore 6.000 inch; Zirconia ceramic liner; Source part-number reference
1317734 — S1 , PDF p. 115 — MP-10; two-piece fluid end; April 2013 manual; liner matrix; bore 6.000 inch; Rubber liner gasket; Source part-number reference
1317736 — S1 , PDF p. 115 — MP-10; two-piece fluid end; April 2013 manual; liner matrix; bore 6.000 inch; Urethane liner gasket; Source part-number reference
1317356 — S1 , PDF p. 115 — MP-10; two-piece fluid end; April 2013 manual; liner matrix; bore 6.500 inch; Chrome iron liner; Source part-number reference
1317365 — S1 , PDF p. 115 — MP-10; two-piece fluid end; April 2013 manual; liner matrix; bore 6.500 inch; Zirconia ceramic liner; Source part-number reference
1317734 — S1 , PDF p. 115 — MP-10; two-piece fluid end; April 2013 manual; liner matrix; bore 6.500 inch; Rubber liner gasket; Source part-number reference
1317736 — S1 , PDF p. 115 — MP-10; two-piece fluid end; April 2013 manual; liner matrix; bore 6.500 inch; Urethane liner gasket; Source part-number reference
1317375 — S1 , PDF p. 115 — MP-10; two-piece fluid end; April 2013 manual; liner matrix; bore 6.750 inch; Chrome iron liner; Source part-number reference
1317383 — S1 , PDF p. 115 — MP-10; two-piece fluid end; April 2013 manual; liner matrix; bore 6.750 inch; Zirconia ceramic liner; Source part-number reference
1317734 — S1 , PDF p. 115 — MP-10; two-piece fluid end; April 2013 manual; liner matrix; bore 6.750 inch; Rubber liner gasket; Source part-number reference
1317736 — S1 , PDF p. 115 — MP-10; two-piece fluid end; April 2013 manual; liner matrix; bore 6.750 inch; Urethane liner gasket; Source part-number reference

Request a Quotation

Send the part number, quantity and pump model for a quotation.

WhatsApp parts inquiry Email parts list

Weatherford MP-10 Mud Pump Spare Parts

Parts List

Reference documents and scope

Source-specific model facts

Identify bare, studded and complete assemblies

What to send with the parts enquiry

Request a Quotation

Phone:

WhatsApp:

Email:

Weatherford MP-10 Mud Pump Spare Parts

Parts List

Reference documents and scope

Source-specific model facts

Identify bare, studded and complete assemblies

What to send with the parts enquiry

Request a Quotation

Related model guides
