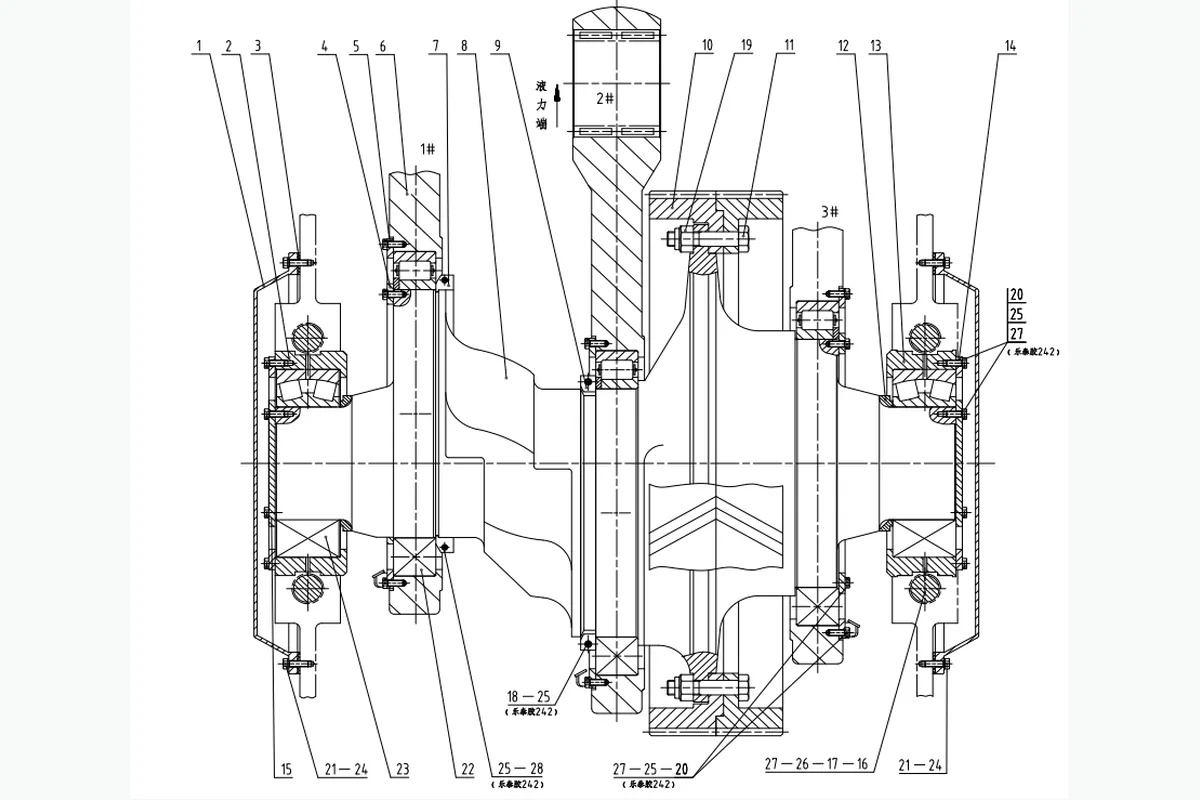

Mud Pump Crankshaft Assembly
Mud Pump Crankshaft Assembly for oilfield drilling equipment maintenance and replacement. Send part number, equipment model or product photo for quotation and compatibility support.
- Category
- BOMCO F Series Mud Pumps
- Inquiry details
- Model · Part No. · Quantity
Email2000@pratt-oil.com
WhatsApp+86 159 0808 0040
Specifications
Models and Technical Specifications
Specification Table 1
| Spare Parts for F500, F-800/F1000 and F-1300/F1600 Drilling Mud Pumps | ||||||
|---|---|---|---|---|---|---|
| Name | Old Model | Model | Old Model | Model | Old Model | Model |
| F1300/F1600 | F-1300/F1600 | F-800/F1000 | F-800/F1000 | F-500 | F-500 | |
| Crank Assembly | AH36002-02.00 | AH1301020200 | AH1001010200 | AH33001-02.00 | AH0801010200 | AH0501010200 |
| AH37002-01.00 | AH1601020100 | AH1001010200 | AH33001-02.00 | AH0801010200 | AH0501010200 | |
| Gear-Shaft Assembly | AH36002-03.00 | AH1301020300 | AH1001010300 | AH33001-03.00 | AH0801010300 | AH34001-03.0 |
| AH37002-02.00 | AH1601020200 | AH0801010300 | AH34001-03.0 | AH0501010300 | AH35001-03.00 | |
| Slider-Head Block | AH36002-04.00 | AH1301020400 | AH1001010400 | AH33001-04.00 | AH0801010400 | AH34001-04.00 |
| Hydraulic-End Assembly | AH36002-05.00 | AH1301020500 | AH1001010500 | AH1001011100 | AH0801010500 | AH34001-05.00 |
| Main-Bearing End Cover | AH36001-02.01C.00 | AH130101020100 | AH100101020100 | AH33001-02.01C.00 | AH080101020100 | AH34001-02.01C.00 |
| Right Main-Bearing Fork | AH36002-02.01 | AH1301020201 | AH1001010202 | AH33001-02.02 | AH0801010202 | AH34001-02.02 |
| AH37002-01.01 | AH1601020101 | |||||
| Sealing Washer | AH36001-02.03 | AH1301010203 | AH1001010203 | AH33001-02.03 | AH0801010203 | AH34001-02.03 |
| Inner Retaining Ring | AH36001-02.04 | AH1301010204 | AH1001010204 | AH33001-02.04 | AH0801010204 | AH34001-02.04A |
| Outer Retaining Ring | AH36001-02.05 | AH130101020500 | AH100101020500 | AH33001-02.05.00 | AH080101020500 | AH34001-02.05.00 |
| AH37001-01.03 | AH160101010200 | |||||
| Rod Joint | AH36002-02.02 | AH1301020202 | AH1001010206 | AH33001-02.06 | AH0801010206 | AH34007-02.02 |
| AH37002-01.02 | AH1601020102 | |||||
| Setting Ring | AH36002-02.03 | AH1301020203 | AH1001010207 | AH33001-02.07 | AH0801010207 | AH34007-02.03 |
| Large ring gear | AH36002-02.04A.00 | AH130102020400 | AH1001010219 | AH33001-02.10A | AH0801010210 | AH34001-02.11A |
| Spacer | AH36001-02.12 | AH1301010211 | AH1001010211 | AH33001-02.13 | AH0801010211 | AH34001-01.13 |
| Main-Bearing Bushing (Left) | AH36002-02.06 | AH1301020206 | AH34001-01.13 | AH33001-02.14 | AH0801010213 | AH34001-02.16 |
| AH37002-01.03 | AH1601020103 | |||||
| Retaining Ring | AH36001-02.14 | AH1301010213 | AH1001010213 | AH33001-02.15 | AH0801010214 | AH34001-02.17 |
| AH37001-01.07 | AH1601010106 | |||||
| Retainer | AH36001-02.15 | AH1301010214 | AH1001010214 | AH33001-02.17 | AH0801010215 | AH34001-02.18 |
| Main-Bearing Bolt | AH36001-02.16C | AH1301010215 | AH1001010215 | AH33009-02.08 | AH0801020206 | AH34007-02.07 |
| Gasket | AH36001-02.17 | AH130101021600 | AH100101021600 | AH33001-02.20.00 | AH080101021200 | AH34001-02.15.00 |
| Eccentric Bearing | AH36001-02.19.00 | AH1301010217 | AH1001010217 | AH33001-02.22 | AH0801010216 | AH34001-02.19 |
| AH37001-01.08.00 | AH1601010107 | |||||
| Main Bearing | AH36001-02.20.00 | AH1301010218 | AH1001010215 | AH33009-02.08 | AH0801020206 | AH34007-02.07 |
| AH37001-01.09.00 | AH1601010108 | |||||
| Washer | 420501036160200000 | 420501036160200000 | AH1001010211 | AH33001-02.13 | AH0801010211 | AH34001-01.13 |
| Large Ring Gear (Connecting) | AH36001-02.10B.00 | AH130101021900 | AH1001010219 | AH33001-02.10A | AH0801010210 | AH34001-02.11A |
| AH37001-01.05B.00 | AH160101010900 | |||||
| Tong | AH36002-03.01 | AH1301020301 | AH1001010301 | AH33001-03.01 | AH0801010301 | AH34001-03.01 |
| Pinion Shaft | AH36002-03.02 | AH1301020302 | AH1001010302 | AH33001-03.02A | AH0801010302 | AH34001-03.02A |
| AH37002-02.01 | AH1601020201 | |||||
| Wear Bushing | AH36001-03.03 | AH1301010303 | AH1001010303 | AH33001-03.03 | AH0801010303 | AH34001-03.03 |
| End Cover | AH36002-03.03B | AH1301020303 | AH1001010304 | AH33001-03.04B | AH0801010304 | AH34001-03.04B |
| Sealing Washer | AH36001-03.05 | AH1301010305 | AH1001010309 | AH33001-03.09B | AH0801010309 | AH34001-03.09B |
| Sealing Washer | AH36001-03.06 | AH1301010306 | AH1001010306 | AH33001-03.06 | AH0801010306 | AH34001-03.06 |
| Bearing Bushing | AH36001-03.07B | AH1301010307 | AH1001010307 | AH33001-03.07B | AH0801010307 | AH34001-03.07B |
| Retaining Ring | AH36002-03.05B | AH1301020305 | AH1001010308 | AH33001-03.08B | AH0801010308 | AH34001-03.08B |
| Sealing Washer | AH36001-03.12B | AH1301010309 | AH1001010309 | AH33001-03.09B | AH0801010309 | AH34001-03.09B |
| Oil Box Assembly | AH36001-03.13B.00 | AH130101031000 | AH10010103000 | AH33001-03.13B.00 | AH080101031000 | AH34001-03.13B.00 |
| Oil seal | AH36001-03.08A | AH1301010311 | AH36001-03.08A | AH1301010311 | AH36001-03.08A | AH1301010311 |
| Bearing | AH36001-03.09 | AH1301010312 | AH1001010312 | AH33001-03.12 | AH0801010312 | AH34001-03.11 |
| Head Block | AH36002-04.01 | AH1301020401 | AH1001010401 | AH33001-04.01 | AH0801010401 | AH34001-04.01 |
| Upper Guide Plate | AH36001-04.02 | AH1301010402 | AH1001010402 | AH33001-04.02 | AH0801010402 | AH34001-04.02 |
| Gasket | AH36001-04.03A.00 | AH100101041700 | AH100101041700 | AH36001-04.03A.00 | AH100101041700 | AH36001-04.03A |
| Adjusting Washer | AH36001-04.04 | AH1301010403 | AH1001010418 | AH33001-04.25A | AH08010118 | AH34001-20 |
| Packing Box | AH36001-04.05 | AH1301010404 | AH1001010403 | AH33001-04.04 | AH0801010403 | AH34001-04.04 |
| Oil-Seal Ring | AH36001-04.21 | AH1301010405 | AH1001010404 | AH33001-04.06A | AH0801010404 | AH34001-04.06A |
| O-ring | 530301011900035000 | 530301011900035000 | 530301011750035000 | GB3452.1-82 | 530301011600035000 | GB3452.1-82 |
| Double Oil Seal | AH36001-04.08A | AH1301010406 | AH1001010416 | AH33001-04.24A | AH0801010414 | AH34001-04.23A |
| Shutoff Spring | AH36001-04.13 | AH1301010407 | AH1001010411 | AH33001-04.16 | AH0801010410 | AH34001-04.15 |
| Mud Guard | AH36001-04.10 | AH1301010408 | AH1001010406 | AH33001-04.08 | AH0801010405 | AH34001-04.07 |
| Extension Rod | AH36001-04.11 | AH1301010409 | AH1001010407 | AH33001-04.09 | AH0801010406 | AH34001-04.08 |
| Crosshead Pin | AH36002-04.03 | AH1301020403 | AH1001010408 | AH33001-04.10 | AH0801010407 | AH34001-04.09 |
| O-ring | 530301011250070000 | 530301011250070000 | 530301011750035000 | GB3452.1-82 | 530301011150053000 | GB3452.1-82 |
| Sealing Gasket | AH36001-04.15 | AH1301010411 | AH1001010413 | AH33001-04.20 | AH0801010411 | AH34001-04.19 |
| O-ring | 530301011600070000 | 530301011600070000 | 530301011600035000 | GB3452.1-82 | 530301011280070000 | GB3452.1-82 |
| Lower Guide Plate | AH36001-04.17 | AH1301010412 | AH1001010409 | AH33001-04.12 | AH0801010408 | AH34001-04.11 |
| Cross-Guide Pin | AH36002-04.04 | AH1301020404 | AH1001010414 | AH33001-04.21 | AH0801010412 | AH34001-04.20 |
| Head-Block Bearing | AH36001-04.19 | AH1301010414 | AH1001010415 | AH33001-04.22 | AH0801010413 | AH34001-04.21 |
| Hydraulic Cylinder Assembly | AH36002-05.01.00 | AH130102050100 | AH100101050100 | AH33001-05.01A.00 | AH050101050100 | AH35001-05.01A.00 |
| Cylinder-Cover Flange | AH36001-05.02 | AH1301010502 | AH1001010502 | AH33001-05.02 | AH0501010502 | AH35001-05.02 |
| Cylinder Cover | AH36001-05.03 | AH1301010503 | AH1001010503 | AH33001-05.03A | AH0501010503 | AH35001-05.03A |
| Board plug fork assembly | AH36001-05A.04.00 | AH130101050400 | AH36001-05A.04.00 | AH130101050400 | AH36001-05A.04.00 | AH130101050400 |
| Valve-Rod Guide (Lower) | AH36001-05A.05.00 | AH130101050500 | AH100101052200 | AH33001-05.31.00 | AH050101051800 | AH35001-05.24.00 |
| Cylinder-Cover Plug | AH36001-05A.06.00 | AH130101050600 | AH100101050500 | AH33001-05.05A | AH050101050500 | AH35001-05.05A |
| Positioning Plate | AH36001-05A.07 | AH1301010507 | AH1001010521 | AH33001-05.30 | AH0501010517 | AH35001-05.23 |
| Cylinder-Cover Seal | AH36001-05.08 | AH1301010508 | AH1001010504 | AH33001-05.04 | AH0501010504 | AH35001-05.04 |
| Manifold Nozzle | AH36001-05.09 | AH1301010509 | AH10010152300 | AH33001-05.34A.00 | AH080101050500 | AH34001-05.06.00A |
| Valve Spring | AH33001-05.16A | AH00000101 | AH00000101 | AH33001-05.16A | AH00000101 | AH33001-05.16A |
| Through-Bore Valve Assembly | AH36001-05.12A.00 | AH0000020300 | AH0000020100 | AH33001-05.17A.00 | AH0000020500 | AH35001-05.14A.00 |
| Valve-Cover Seal | AH36001-05.13 | AH1301010510 | AH1001010508 | AH33001-05.09 | AH0501010508 | AH35001-05.09 |
| Valve Cover | AH36002-05.02 | AH1301020502 | AH1001010509 | AH33001-05.11A | AH0501010509 | AH35001-05.11A |
| Cylinder-Liner Seal | AH36001-05.15 | AH1301010512 | AH1001010504 | AH33001-05.04 | AH0501010504 | AH35001-05.04 |
| Wear Plate | AH36002-05.03 | AH1301020503 | AH36002-05.03 | AH1301020503 | AH36002-05.03 | AH1301020503 |
| Cylinder-Liner Flange | AH36001-05.17 | AH1301010514 | AH36001-05.17 | AH1301010514 | AH36001-05.17 | AH1301010514 |
| Cylinder-Liner Cover | AH36001-05.18.00 | AH130101051500 | AH36001-05.18.00 | AH130101051500 | AH36001-05.18.00 | AH130101051500 |
| Piston Rod | AH36002-05.05 | AH1301020504 | AH1001010516 | AH33001-05.21A | AH0801010502 | AH34001-05.02A |
| O-ring | 530301012000070000 | 530301012000070000 | 530301013450070000 | GB3452.1-82 | 530301012900070000 | GB3452.1-82 |
| Cylinder-Liner Retaining Ring | AH36001-05.22 | AH1301010518 | AH36001-05.22 | AH1301010518 | AH36001-05.22 | AH1301010518 |
| Bimetallic Bushing | AH130102051200 | AH130102051200 | AH130102051200 | AH130102051200 | AH130102051200 | AH130102051200 |
| Clamp assembly | AH36002-05.06.00 | AH130102050600 | AH100101051900 | AH33001-05.24.00 | AH080101050400 | AH34001-05.04.00 |
| Bushing End Cover | AH36001-05.27 | AH1301010520 | AH1001010520 | AH33001-05.27 | AH0501010516 | AH35001-05.22 |
| British Piston | AH36002-05.09.00 | AH130102050800 | AH36002-05.09.00 | AH130102050800 | AH36002-05.09.00 | AH130102050800 |
| Suction Manifold | AH36002-05.12A.00 | AH130102051100 | AH10010152300 | AH33001-05.34A.00 | AH080101050500 | AH34001-05.06.00A |
| Gasket | AH36001-05.33A.00 | AH130101052300 | AH36001-05.33A.00 | AH130101052300 | AH36001-05.33A.00 | AH130101052300 |
| Valve-Rod Guide (Upper) | AH33001-05.12 | AH1001010510 | AH1001010510 | AH33001-05.12 | AH0501010510 | AH35001-05.12 |
| Apron | AH33001-05.14 | AH1001010512 | AH1001010512 | AH33001-05.14 | AH0501010511 | AH35001-05.13 |
| Intake Locking Plate | T55-1006 | T505-1006 | AH1001010525 | AH33001-05.39 | AH0801010508 | AH34001-05.10 |
| Suction Flange | AH33001-05.39 | AH1001010525 | AH1001010526 | AH33001-05.40 | AH0801010509 | AH34001-05.11 |
| Suction Flange | AH33009-05.03 | AH1001020509 | AH1001010526 | AH33001-05.40 | AH0801010509 | AH34001-05.11 |
| Discharge Locking Plate | T55-1008 | T505-1008 | AH050101051900 | AH35001-05.28.00A | T55-1008 | T505-1008 |
| Suction Air Chamber | AH33001-05.35A.00 | AH0000050100 | AH0000050100 | AH33001-05.35A.00 | AH080101050600 | AH34001-05.07A.00 |
| Suction Air-Chamber Assembly | AH33001-05.35A.00 | AH0000050100 | AH0000050100 | AH33001-05.35A.00 | AH080101050600 | AH34001-05.07A.00 |
| Bottle | AH33001-05.35A.02 | AH0000050101 | AK4535010100 | AK4535010100 | AK4535010100 | AK4535010100 |
| End Cover | AH33001-05.35B.03 | AH0000050102 | AH33001-05.35B.03 | AH0000050102 | AH33001-05.35B.03 | AH0000050102 |
| General View | AK75350200 | AK75350200 | AK4535010100 | AK4535010100 | AK4535010100 | AK4535010100 |
| Lower plug | AH33002-02 | AK75350101 | AK75350101 | AH33002-02 | AK75350101 | AH33002-02 |
| Bottle | AH33002-03.00 | AK7535010200 | AK4535010100 | AK4535010100 | AK4535010100 | AK4535010100 |
| Shell Assembly | AH33010-01.00 | AK7535020100 | AK4535020100 | AH34005-01.00 | AK4535010200 | AH34002-02A.00 |
| Cover | AH33010-02A | AK75350202 | AK45350103 | AH34005-02 | AK45350103 | AH34005-02 |
| Dual-Scale Gauge | Y60 | 380202052250006000 | Y60 | 380202052250006000 | Y60 | 380202052250006000 |
| Angle Shutoff Valves | JZR3-L8 | AK7535010002 | JZR3-L8 | AK7535010002 | JZR3-L8 | AK7535010002 |
| JA-3 Shear-Pin Safety Valve | AH33007-00 | AH0000060200 | AH33007-00 | AH0000060200 | AH33007-00 | AH0000060200 |
