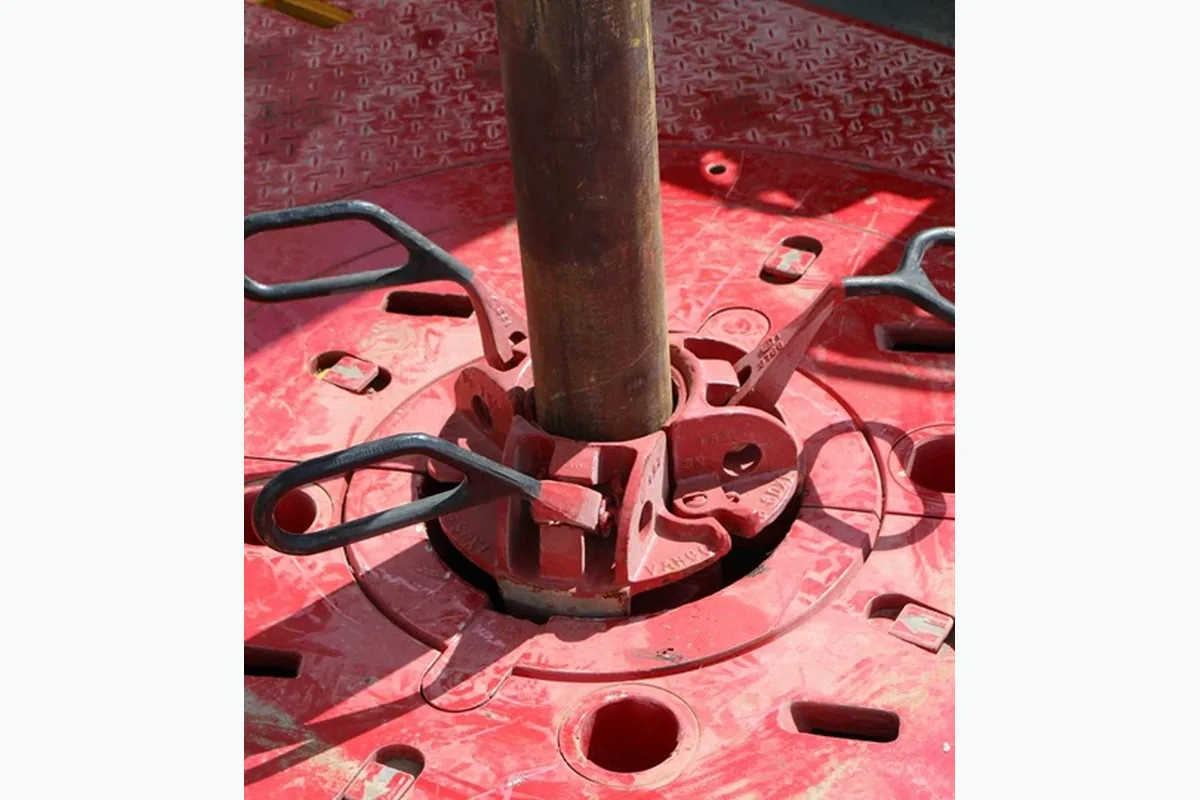

ZP Drilling Rig Rotary Table
ZP Drilling Rig Rotary Table for oilfield drilling equipment maintenance and replacement. Send part number, equipment model or product photo for quotation and compatibility support.
- Category
- Drilling Rigs and Drawworks Accessories
- Inquiry details
- Model · Part No. · Quantity
Email2000@pratt-oil.com
WhatsApp+86 159 0808 0040
Application
ZP Drilling Rig Rotary Table for oilfield drilling equipment maintenance and replacement. Send part number, equipment model or product photo for quotation and compatibility support.
Supply Support
Specification matching, export packaging, WhatsApp and email communication support for oilfield buyers.
Specifications
Models and Technical Specifications
Specification Table 1
| Model | ZP175 | ZP205 | ZP275 | ZP375 | ZP375Z | ZP495 | |
|---|---|---|---|---|---|---|---|
| Table Opening | mm | 444.5 | 520.7 | 698.5 | 952.5 | 952.5 | 1, 257.3 |
| (in) | 17.5 | 20.5 | 27.5 | 37.5 | 37.5 | 49.5 | |
| Distance from Table Centerline to Centerline of Inner Sprocket Tooth Row | mm | 1,118 | 1, 353 | 1, 353 | 1, 353 | 1, 353 | 1, 651 |
| (in) | 44 | 53.25 | 53.25 | 53.25 | 53.25 | 65 | |
| Static Load Capacity | kN | 1,350 | 3, 150 | 4, 500 | 5, 850 | 7, 250 | 9, 000 |
| lbs | 300, 000 | 700, 000 | 1, 000, 000 | 1, 300, 000 | 1, 600, 000 | 2, 000, 000 | |
| Maximum Operating Torque | Nm | 13, 729 | 22, 555 | 27, 459 | 32, 362 | 45, 000 | 64, 400 |
| Maximum Rotational Speed | r/min | 300 | 300 | 300 | 300 | 300 | 300 |
| Gear Ratio | 3.75 | 3.22 | 3.67 | 3.58 | 3.62 | 4.0883 | |
| Overall Dimensions | mm | 1, 972× | 2, 266× | 2, 380× | 2, 468× | 2, 468× | 3, 015× |
| (L×W×H) | 1, 372×566 | 1, 475×704 | 1, 475×690 | 1, 920×718 | 1, 810×718 | 2, 254×819 | |
| Weight | kg | 4, 172 | 5, 662 | 6,122 | 7, 970 | 9,540 | 11, 260 |
